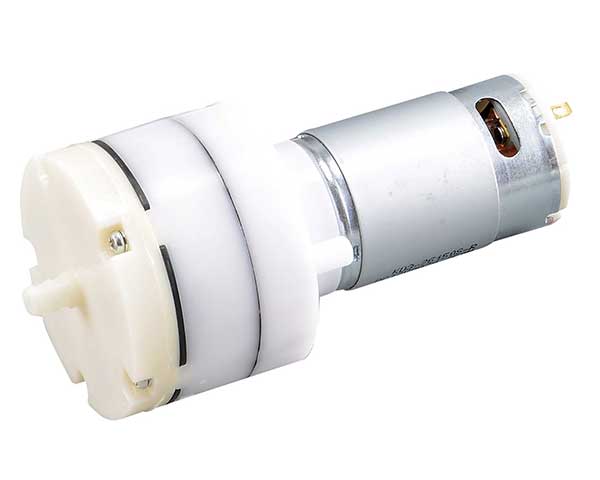

DC-17V DC Air Pump

Vacuum: 350mmHg
Pressure: 0.8kgf/cm2
Open Flow: 16LPM

Micro DC Air Pump can be used in vacuum and air pressure

Feature:
Can be used as vacuum & compressor, Oilless operation, Compact design, Low noise level, Low pulsation

Application:
car lumbar air lumbar support, Air seats, Medical application, Beauty apparatus, Household appliances, Various application

Product Specifications

規格項目 SPEC單位 UNIT規格值 SPEC.Value
電壓 Rated VoltageVDC 12 / 24
最大真空度 Maximum vacuummmHg350
最大壓力 Pressurekgf/cm20.8
最大流量 Open FlowLPM16
消耗功率 Power ConsumptionW27.6
外型尺寸 Dimension mm130 x 60 x 60
適用內徑軟管 Hose ID SuggestionmmΦ 6
重量 Weightg300
馬達壽命 Reference lifetimehours>200
規格項目 SPEC單位 UNIT規格值 SPEC.Value
電壓 Rated VoltageVDC 12 / 24
最大真空度 Maximum vacuummmHg350
最大壓力 Pressurekgf/cm20.8
最大流量 Open FlowLPM16
消耗功率 Power ConsumptionW27.6
外型尺寸 Dimension mm130 x 60 x 60
適用內徑軟管 Hose ID SuggestionmmΦ 6
重量 Weightg300
馬達壽命 Reference lifetimehours>200

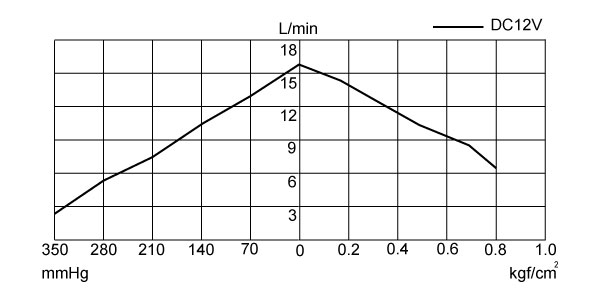

Product Performance


DC-17V-Performance

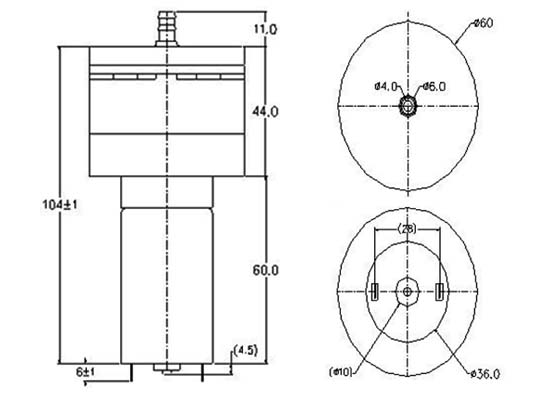

Product Dimensions


DC-17V-Dimensional-drawings

Recommended Accessories

  • UNICROWN Vacuum Filters VF-A1
    Vacuum Filter

    VF-A1

    Bore: 8mm
    Flow: 100LPM
