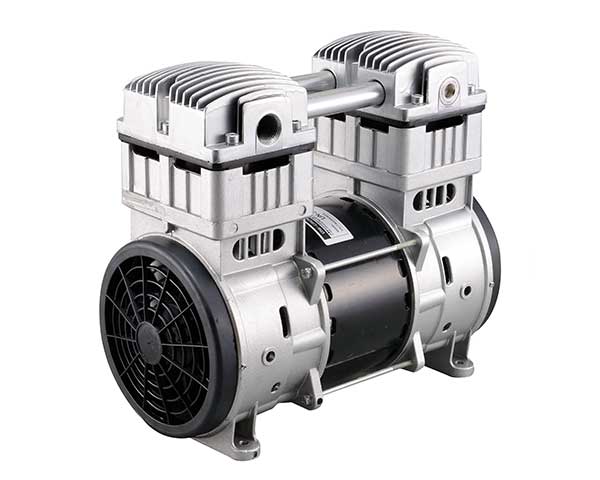

UN-300V Oilless Vacuum Pump

Vacuum: 680mmHg
Flow: 280LPM

We add value to our customers’ businesses through unique end-use solutions and innovative OEM products. Oilless Vacuum Pump UN-300V

Feature:
Oilless operation, Compact design, Motor mounted with thermo protection, Rugged construction/low maintenance

Application:
Processing machine, LED test machine,Printing machine

Certification:
CE EMC Certification
EN 55014-1:2017/A11:2020
EN 55014-2:2015
EN IEC 6100-3-2:2019/A1:2021
EN 61000-3-3:2013/A1:2019

CE LVD Certification
EN 60335-1: 2012+A13:2017
EN 60335-2-34:2013

Product Specifications

規格項目 SPEC單位 UNIT規格值 SPEC.Value
電壓 Rated VoltageVAC 220
最大真空度 Max.VacuummmHg680
最大流量 Open FlowLPM280(60Hz) /250(50Hz)
消耗功率 Power ConsumptionW950
外型尺寸 Dimension mm320 x 170 x 290
安裝尺寸 Installation Sizemm243 x 127 x M8
適用內徑軟管 Hose ID SuggestionPT1/2"
重量 Weightkg18
規格項目 SPEC單位 UNIT規格值 SPEC.Value
電壓 Rated VoltageVAC 220
最大真空度 Max.VacuummmHg680
最大流量 Open FlowLPM280(60Hz) /250(50Hz)
消耗功率 Power ConsumptionW950
外型尺寸 Dimension mm320 x 170 x 290
安裝尺寸 Installation Sizemm243 x 127 x M8
適用內徑軟管 Hose ID SuggestionPT1/2"
重量 Weightkg18

We add value to our customers’ businesses through unique end-use solutions and innovative OEM products.

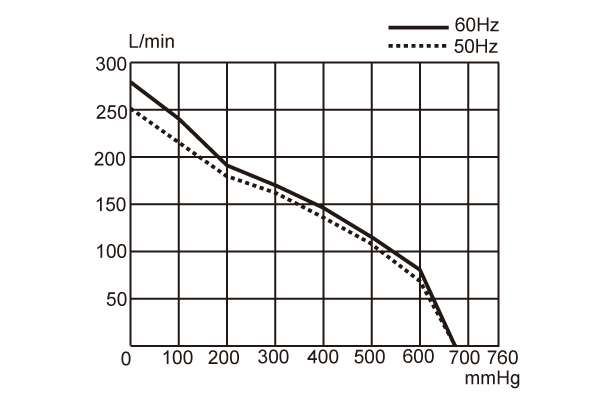

Product Performance


UN-300V-Performance

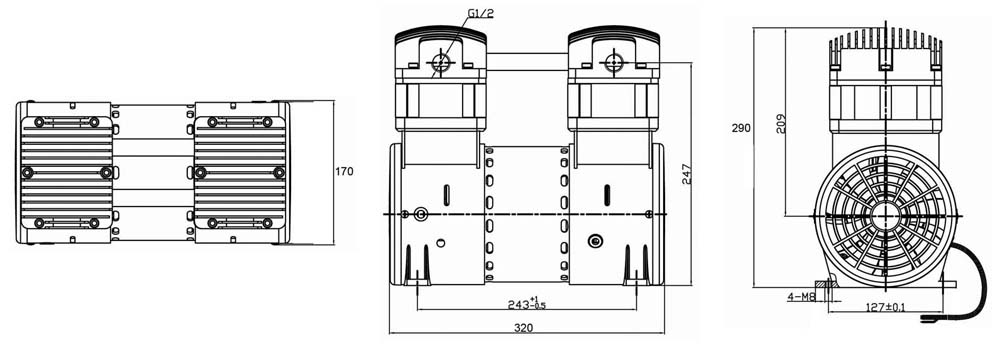

Product Dimensions


UN-300V-Dimensional-drawings

Recommended Accessories

  • UNICROWN Vacuum Filters VF-D
    Vacuum Filter

    VF-D

    Bore: 1/2″
    Flow: 600LPM
