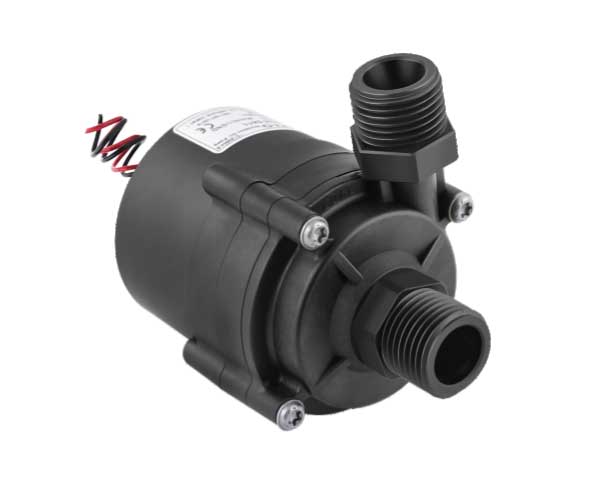

Our Hot water circulating system pump design features micro centrifugal pumps powered by brushless DC motors. They are designed to be cool, quiet, compact and lightweight. A variety of features, including a seal-less design to prevent leakage, wide range of working voltage, stable performance, long life time, enable the pumps to meet a full spectrum of user needs, with emphasis on ease of installation, operation and maintenance.
A centrifugal pump made up of two main components, including rotating system and a stationary part. It is a mechanical device designed to move a fluid by means of the transfer of rotational energy from one or more driven rotors, called impellers. Fluid enters the rapidly rotating impeller along its axis and is cast out by centrifugal force along its circumference through the impeller’s vane tips. The action of the impeller increases the fluid’s velocity and pressure and also directs it towards the pump outlet.
Feature：
♦ Advanced magnetic driving technology for static-seal,without any leakage forever
♦ Heavy duty work,can sustain continuous work
♦ High efficiency ECM brushless DC motor with long lifetime 20,000hours
♦ 3-phase motor for lower power consumption and lower fever
♦ Durable permanent magnetic rotor/impeller and fine ceramic shaft
♦ Specializing closed-type impeller for lower water loss bring higher efficiency
♦ High precision one-time injection magnetic rotor for stable lower vibration
♦ High temperature materials for liquid temperature 100°C
♦ Low or no maintenance
♦ Food grade materials
♦ Imported Japan XYRON PPE material
Application：
The centrifugal brushless pumps are designed for general, commercial and industrial applications. Ideal for circulation pump applications. They will pump fresh water, seawater, and other liquids that are compatible with the pumps materials and that are of similar viscosity to water.
1. Liquid transfer general purpose pumping
2. Hot water circulating system pump
3. Electronics Cooling Water Circulation Chiller Systems pump
4. 3D printer cooling water pump
5. Instant electric water heater, electric shower pump
6. Circulating systems for homes
7. Cleaning equipment, purification and water treatment pump
8. Smart toilet boosting pump
9. Boosting applications pump
10. Medical Equipment Water Pump,Gene Sequencer Cooling Pump
11. EV charging pile,supercharger cables cooling
Product Specifications
| 規格項目 SPEC | 單位 UNIT | 規格值 SPEC.Value |
|---|---|---|
| 額定電壓 Rated Voltage | V | BLDC 12 |

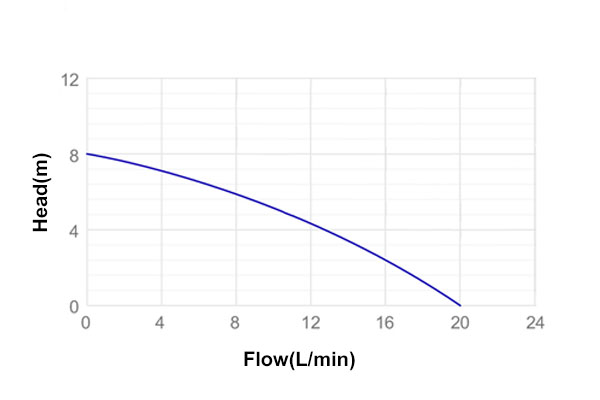

| 最大揚程 Max.Pressure Height | mH2O | 8 |
| 最大流量 Max. Flow | L/min | 20 |
| 液體溫度 Liquid Temperature | °C | -40 ~ 75 連續工作 Continuous 100 間斷⼯作 Intermittent |
| 消耗功率 Power Consumption | W | 38.4 |
| 外型尺寸 Dimension | mm | 93.8 x 83.7 |
| 馬達壽命 Reference lifetime | hours | 20,000 |
| 安裝口徑 I.D. of screw threa | G 1/2 |
| 規格項目 SPEC | 單位 UNIT | 規格值 SPEC.Value |
|---|---|---|
| 額定電壓 Rated Voltage | V | BLDC 12 |
| 最大揚程 Max.Pressure Height | mH2O | 8 |
| 最大流量 Max. Flow | L/min | 20 |
| 液體溫度 Liquid Temperature | °C | -40 ~ 75 連續工作 Continuous 100 間斷⼯作 Intermittent |
| 消耗功率 Power Consumption | W | 38.4 |
| 外型尺寸 Dimension | mm | 93.8 x 83.7 |
| 馬達壽命 Reference lifetime | hours | 20,000 |
| 安裝口徑 I.D. of screw threa | G 1/2 |
Usage Note:
♦ The pump is not self-priming.
♦ The pump shall not be operated running dry.
♦ Reversed polarity condition harms the electronics (Custom-made is an exception)
♦ The actual performances would vary accordingly from test conditions, media temperature, and the environment of users.
Product Dimensions
