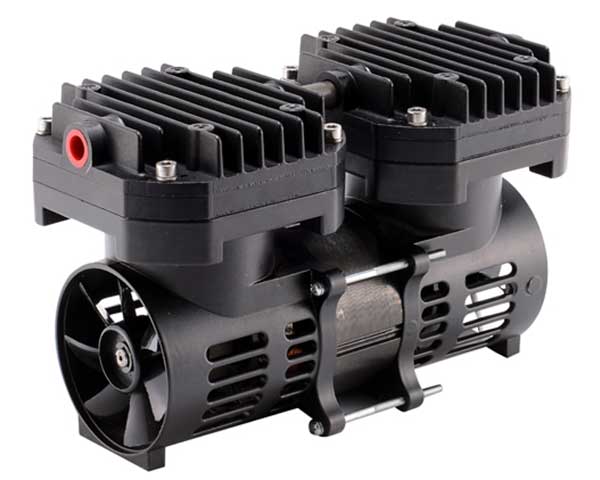

Vacuum Pump Should Be Used for the Sterilizer, vacuum pump for autoclaves UN-40-ATC
Feature：
F grade motor with overload protector,Maintenance free, Salt water resistant,Can endure 155 Celsius degree,Dew and heat resistant
Application：
Autoclaves, Aspirators, Vacuum ovens, Analyzers, Rotation evaporator, vacuum filtration, vacuum distillation, vacuum drying, rotary evaporator, extraction and transfer of gas, gel drying, autoclaving, etc. Please note: Not suitable for corrosion-resistant gases.
Product Specifications
| 規格項目 SPEC | 單位 UNIT | 規格值 SPEC.Value |
|---|---|---|
| 電壓 Rated Voltage | V | AC 110 or 220 |
| 最大真空度 Max.Vacuum | mmHg | 740 |
| 最大流量 Open Flow | LPM | 40(60Hz) / 37(50Hz) |
| 消耗功率 Power Consumption | W | 120 |
| 外型尺寸 Dimension | mm | 238 x 110 x 146 |
| 安裝尺寸 Installation Size | mm | 54 x 35 x M4 |
| 適用內徑軟管 Hose ID Suggestion | PT | 1/4" |
| 重量 Weight | kg | 4.4 |
| 馬達耐溫絕緣等級 Insulation class | F級(155℃) |
| 規格項目 SPEC | 單位 UNIT | 規格值 SPEC.Value |
|---|---|---|
| 電壓 Rated Voltage | V | AC 110 or 220 |
| 最大真空度 Max.Vacuum | mmHg | 740 |
| 最大流量 Open Flow | LPM | 40(60Hz) / 37(50Hz) |
| 消耗功率 Power Consumption | W | 120 |
| 外型尺寸 Dimension | mm | 238 x 110 x 146 |
| 安裝尺寸 Installation Size | mm | 54 x 35 x M4 |
| 適用內徑軟管 Hose ID Suggestion | PT | 1/4" |
| 重量 Weight | kg | 4.4 |
| 馬達耐溫絕緣等級 Insulation class | F級(155℃) |

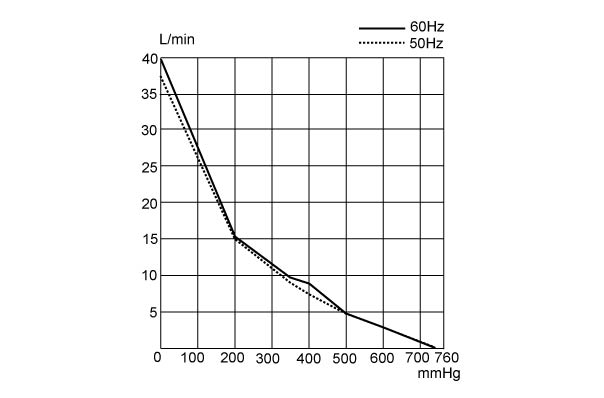

Product Performance

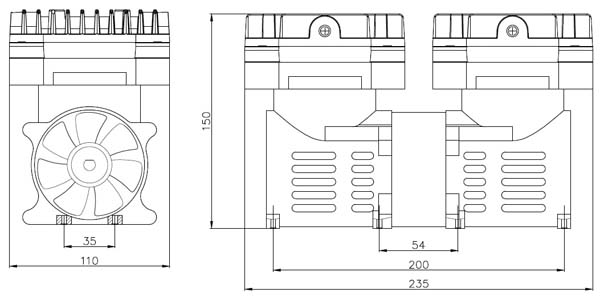

Product Dimensions
