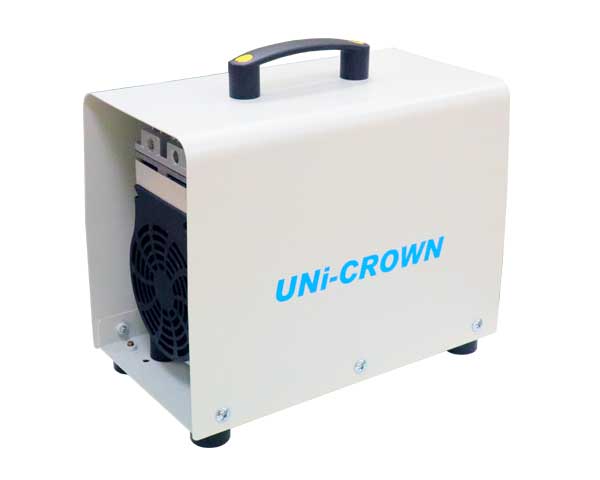

SE-150VH Our lab vacuum pump, Max Vacuum 740mmHg Max Flow 70LPM
Oilless vacuum pump can always replace oil vacuum pumps, because it brings convenience and makes the environment cleaner. Doesn’t need regular maintenance. The pump can pull a vacuum strong enough for most lab or industrial work. The box lab vacuum pump is compact and easy to store when not in use.and can be save space. It is built with sturdy lab-quality materials meant to last for years.
Feature：
Oilles design, no pollution generated, Compact and easy carry design, Overload protection, Low vibration and low noise emission
Application：
Vacuum degassing,Laboratory and medical instruments, As vacuum source for machinerines, Various electronic semiconductor
Product Specifications
| 規格項目 SPEC | 單位 UNIT | 規格值 SPEC.Value |
|---|---|---|
| 電壓 Rated Voltage | V | AC 110 or 220 |
| 最大真空度 Maximum vacuum | mmHg | 740 |
| 最大流量 Open Flow | L/min | 70(60Hz) / 55(50Hz) |
| 消耗功率 Power Consumption | W | 300 |
| 外型尺寸 Dimension | mm | 340 x 187.4 x 305 |
| 安裝口徑 I.D. of screw thread | PT | 1/4" |
| 重量 Weight | kg | 11.5 |
| 規格項目 SPEC | 單位 UNIT | 規格值 SPEC.Value |
|---|---|---|
| 電壓 Rated Voltage | V | AC 110 or 220 |
| 最大真空度 Maximum vacuum | mmHg | 740 |
| 最大流量 Open Flow | L/min | 70(60Hz) / 55(50Hz) |
| 消耗功率 Power Consumption | W | 300 |
| 外型尺寸 Dimension | mm | 340 x 187.4 x 305 |
| 安裝口徑 I.D. of screw thread | PT | 1/4" |
| 重量 Weight | kg | 11.5 |

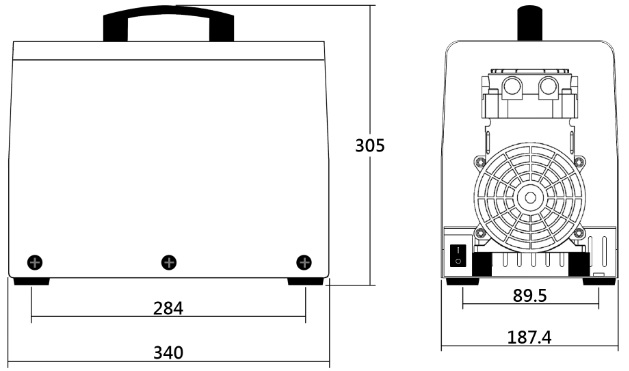

Product Dimensions
