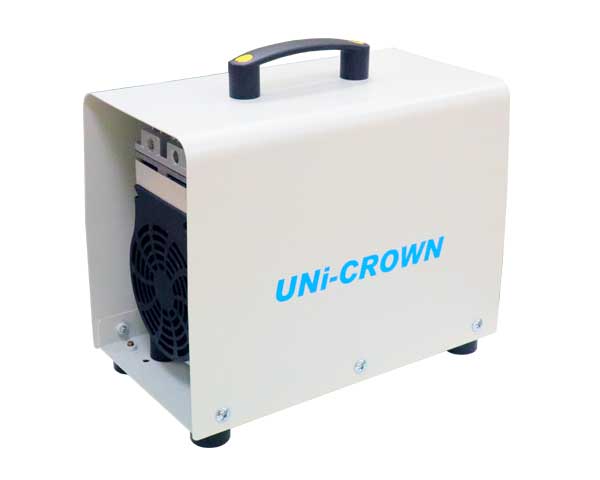

SE-150VH Lab vacuum pump

Vacuum: 740mmHg
Flow: 70LPM

SE-150VH Our lab vacuum pump, Max Vacuum 740mmHg Max Flow 70LPM

Oilless vacuum pump can always replace oil vacuum pumps, because it brings convenience and makes the environment cleaner. Doesn’t need regular maintenance. The pump can pull a vacuum strong enough for most lab or industrial work. The box lab vacuum pump is compact and easy to store when not in use.and can be save space. It is built with sturdy lab-quality materials meant to last for years.

Feature:
Oilles design, no pollution generated, Compact and easy carry design, Overload protection, Low vibration and low noise emission

Application:
Vacuum degassing,Laboratory and medical instruments, As vacuum source for machinerines, Various electronic semiconductor

Product Specifications

規格項目 SPEC單位 UNIT規格值 SPEC.Value
電壓 Rated VoltageVAC 110 or 220
最大真空度 Maximum vacuummmHg740
最大流量 Open FlowL/min70(60Hz) / 55(50Hz)
消耗功率 Power ConsumptionW300
外型尺寸 Dimension mm340 x 187.4 x 305
安裝口徑 I.D. of screw threadPT1/4"
重量 Weightkg11.5
規格項目 SPEC單位 UNIT規格值 SPEC.Value
電壓 Rated VoltageVAC 110 or 220
最大真空度 Maximum vacuummmHg740
最大流量 Open FlowL/min70(60Hz) / 55(50Hz)
消耗功率 Power ConsumptionW300
外型尺寸 Dimension mm340 x 187.4 x 305
安裝口徑 I.D. of screw threadPT1/4"
重量 Weightkg11.5

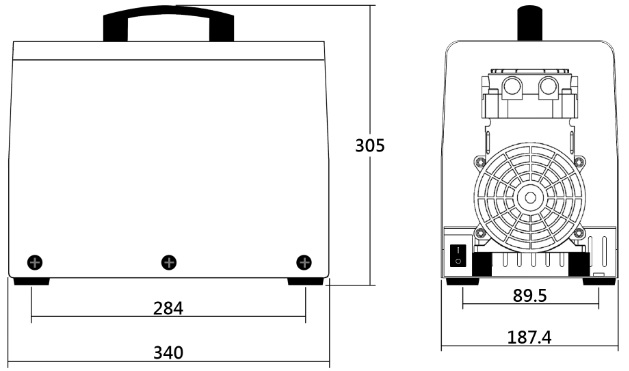

Product Dimensions


SENIOR-Dimensional-drawings
