UC-RB560/3 Blower

Flow: 600m3/h
HP: 7.5HP
Bore: G2″

Blower│Industrial blower│UC-RB560/3

Feature:
Wide application, Low noise level, High air volume,Quiet and low vibration, oil free operation

Application:
Aeration of waste water systems or pond aeration,Vacuum cleaning system, Pneumatic conveying system,Galvanic technology, Drying process, Aquaculture

Product Specifications

規格項目 SPEC單位 UNIT規格值 SPEC.Value規格值 SPEC.Value
頻率 FrequencyHz50 60
馬力 HPHP7.57.5
消耗功率 Power Consumptionkw5.56.3
電壓 Rated VoltageV380 / 660380 / 660
定額電流 Rated CurrentA13.3△ / 7.7Y13.3△ / 7.7Y
最大風量 Maximum Flowm3/h500600
最大真空度 Maximum Vacuummbar-240-210
最大壓力 Maximum Pressurembar260200
口徑 Installation DiameterinchG2"G2"
噪音值 NoisedB7478
重量 Weight kg6969
規格項目 SPEC單位 UNIT規格值 SPEC.Value規格值 SPEC.Value
頻率 FrequencyHz50 60
馬力 HPHP7.57.5
消耗功率 Power Consumptionkw5.56.3
電壓 Rated VoltageV380 / 660380 / 660
定額電流 Rated CurrentA13.3△ / 7.7Y13.3△ / 7.7Y
最大風量 Maximum Flowm3/h500600
最大真空度 Maximum Vacuummbar-240-210
最大壓力 Maximum Pressurembar260200
口徑 Installation DiameterinchG2"G2"
噪音值 NoisedB7478
重量 Weight kg6969

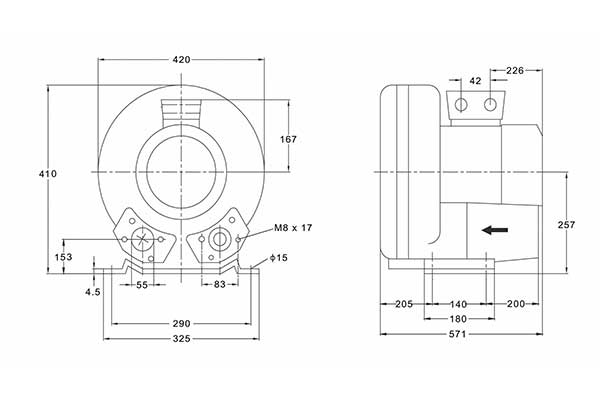

Product Dimensions


UC-RB560-3-Dimensional-drawings
