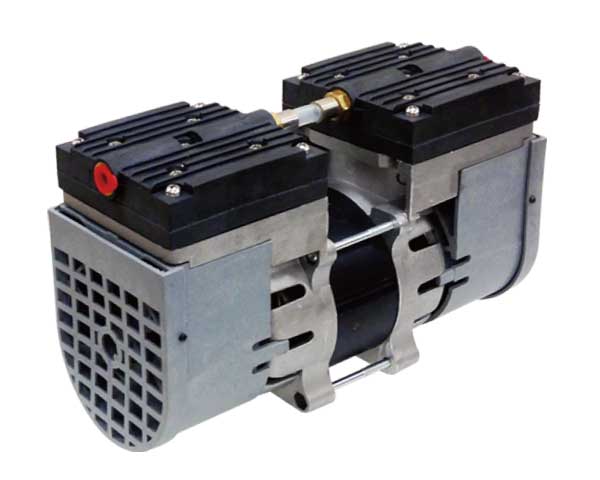

UN-25-ATC Oilless Vacuum Pump

Vacuum: 720mmHg
Flow: 28LPM

UN-25-ATC Vacuum Pump Should Be Used for the Sterilizer, vacuum pump for autoclaves

Feature:
F grade motor with overload protector, Maintenance free, Salt water resistant,Can endure 155 Celsius degree,Dew and heat resistant

Application:
sterilization equipment, Autoclaves, Aspirators, Vacuum ovens, Analyzers, Rotation evaporator, vacuum filtration, vacuum distillation, vacuum drying, rotary evaporator, extraction and transfer of gas, gel drying, autoclaving, etc. Please note: Not suitable for corrosion-resistant gases. Pulsating vacuum sterilization uses high-pressure steam and vacuum to effectively kill bacteria and microorganisms.

Product Specifications

規格項目 SPEC單位 UNIT規格值 SPEC.Value
電壓 Rated VoltageVAC 110 or 200 or 220
最大真空度 Max.VacuummmHg 720
最大流量 Open FlowLPM28(60Hz) / 25(50Hz)
消耗功率 Power ConsumptionW 85
外型尺寸 Dimension mm220 x 92 x 130
安裝口徑 I.D. of screw threadPT1/8"
重量 Weightkg3.1
馬達耐溫絕緣等級 Insulation classF級(155℃)
規格項目 SPEC單位 UNIT規格值 SPEC.Value
電壓 Rated VoltageVAC 110 or 200 or 220
最大真空度 Max.VacuummmHg 720
最大流量 Open FlowLPM28(60Hz) / 25(50Hz)
消耗功率 Power ConsumptionW 85
外型尺寸 Dimension mm220 x 92 x 130
安裝口徑 I.D. of screw threadPT1/8"
重量 Weightkg3.1
馬達耐溫絕緣等級 Insulation classF級(155℃)

Product Performance



Product Dimensions


UN-25-ATC-F-Dimensional-drawings

Recommended Accessories

  • UNICROWN Vacuum Filters With Regulators VFR-B
    Vacuum Regulator

    VFR-B

    Bore: 1/4″
    flow: 200LPM
