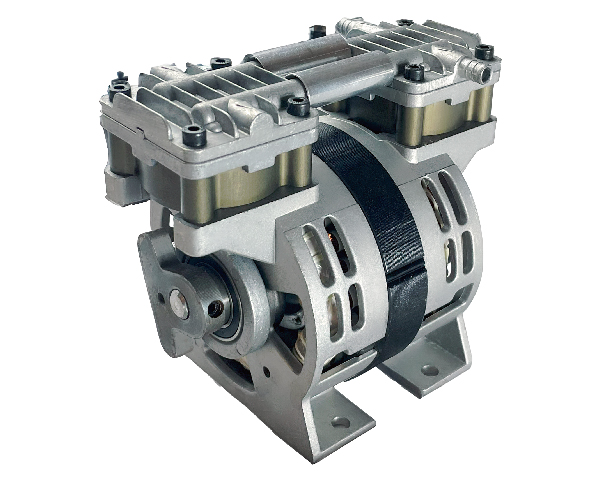

UN-50D Oilless Vacuum Pump

Vacuum: 620mmHg
Flow: 20LPM

Oilless Vacuum Pump│Vacuum Pump│UN-50D

Feature:
Can be used as vacuum pump, Oilless operation, Low noise level,Compact design

Application:
Cupping machine, Various application,Plate-making machine

Certification:
CE EMC Certification
EN 55014-1:2006+A1:2009+A2:2011
EN 55014-2:2015
EN 61000-3-2:2014
EN 61000-3-3:2013

CE LVD Certification
EN 60335-1: 2012+A13:2017
EN 60335-2-80: 2003+A1:2004+A2:2009

Product Specifications

規格項目 SPEC單位 UNIT規格值 SPEC.Value
電壓 Rated VoltageVAC 110 or 220
最大真空度 Max.VacuummmHg620 or 610
最大流量 Open FlowLPM20(60Hz) / 16(50Hz)
消耗功率 Power ConsumptionW85
外型尺寸 Dimension mm140 x 90 x 117 (110V)
165 x 90 x 124 (220V)
安裝尺寸 Installation Sizemm44.4 x 78
適用內徑軟管 Hose ID Suggestionmm6
重量 Weightkg2.3
規格項目 SPEC單位 UNIT規格值 SPEC.Value
電壓 Rated VoltageVAC 110 or 220
最大真空度 Max.VacuummmHg620 or 610
最大流量 Open FlowLPM20(60Hz) / 16(50Hz)
消耗功率 Power ConsumptionW85
外型尺寸 Dimension mm140 x 90 x 117 (110V)
165 x 90 x 124 (220V)
安裝尺寸 Installation Sizemm44.4 x 78
適用內徑軟管 Hose ID Suggestionmm6
重量 Weightkg2.3

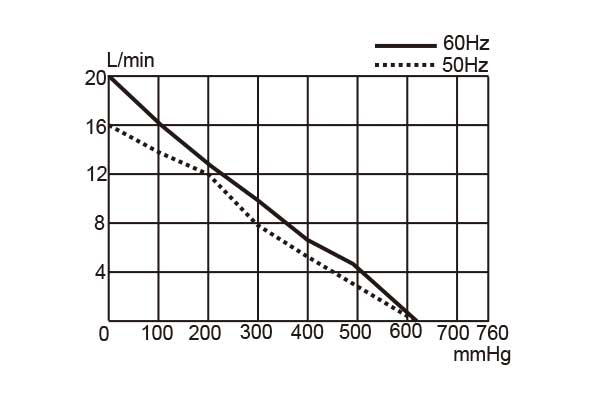

Product Performance



Product Dimensions

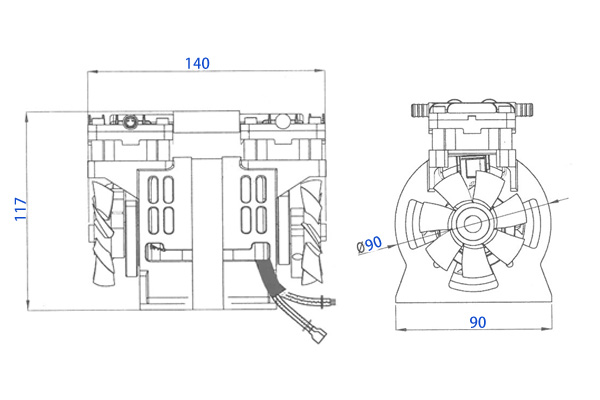

UN-50D Dimensional drawings

Recommended Accessories

  • UNICROWN Vacuum Filters VF-A1
    Vacuum Filter

    VF-A1

    Bore: 8mm
    Flow: 100LPM
