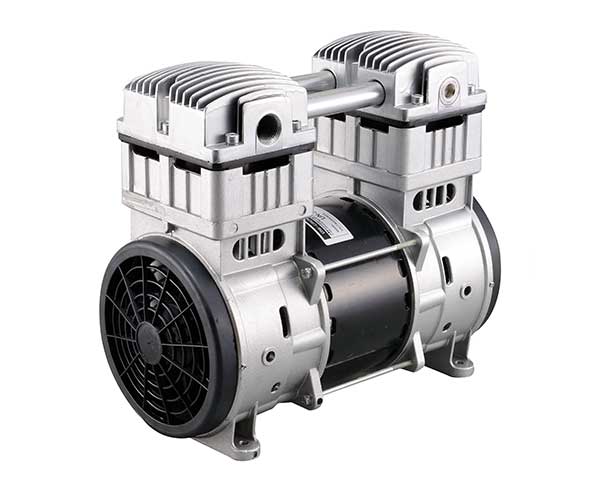

We add value to our customers’ businesses through unique end-use solutions and innovative OEM products. Oilless Vacuum Pump UN-300VH
Feature：
Oilless operation, Compact design,Motor mounted with thermo protection,Rugged construction/low maintenance
Application：
Processing machine, LED test machine, Printing machine
Certification：
CE EMC Certification
EN 55014-1:2017/A11:2020
EN 55014-2:2015
EN IEC 6100-3-2:2019/A1:2021
EN 61000-3-3:2013/A1:2019
CE LVD Certification
EN 60335-1: 2012+A13:2017
EN 60335-2-34:2013
Product Specifications
| 規格項目 SPEC | 單位 UNIT | 規格值 SPEC.Value |
|---|---|---|
| 電壓 Rated Voltage | V | AC 220 |
| 最大真空度 Max.Vacuum | mmHg | 740 |
| 最大流量 Open Flow | LPM | 140(60Hz) /125(50Hz) |
| 消耗功率 Power Consumption | W | 950 |
| 外型尺寸 Dimension | mm | 320 x 170 x 290 |
| 安裝尺寸 Installation Size | mm | 243 x 127 x M8 |
| 適用內徑軟管 Hose ID Suggestion | PT | 1/2" |
| 重量 Weight | kg | 18 |
| 規格項目 SPEC | 單位 UNIT | 規格值 SPEC.Value |
|---|---|---|
| 電壓 Rated Voltage | V | AC 220 |
| 最大真空度 Max.Vacuum | mmHg | 740 |
| 最大流量 Open Flow | LPM | 140(60Hz) /125(50Hz) |
| 消耗功率 Power Consumption | W | 950 |
| 外型尺寸 Dimension | mm | 320 x 170 x 290 |
| 安裝尺寸 Installation Size | mm | 243 x 127 x M8 |
| 適用內徑軟管 Hose ID Suggestion | PT | 1/2" |
| 重量 Weight | kg | 18 |
We add value to our customers’ businesses through unique end-use solutions and innovative OEM products.

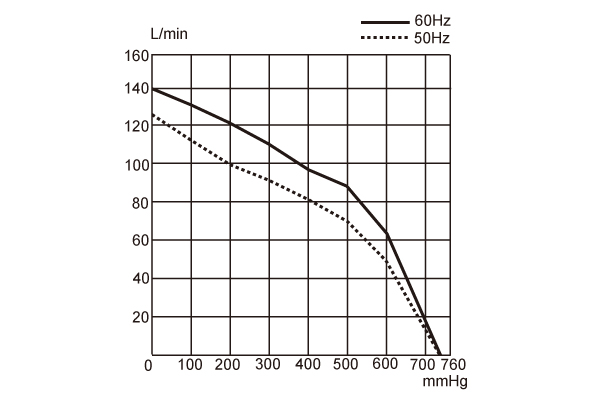

Product Performance

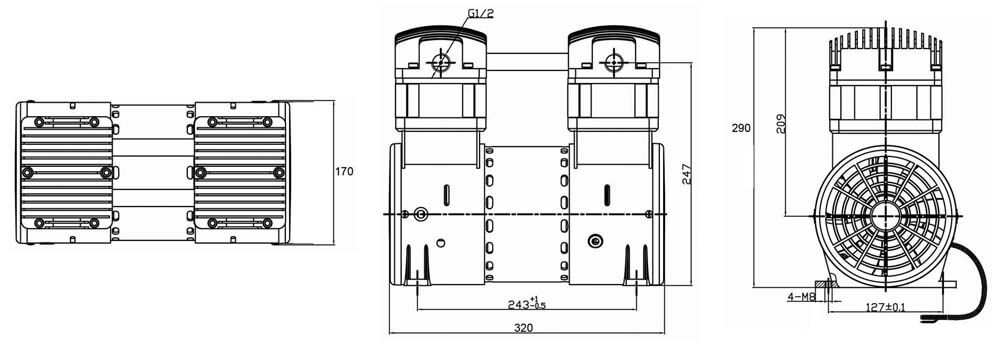

Product Dimensions
