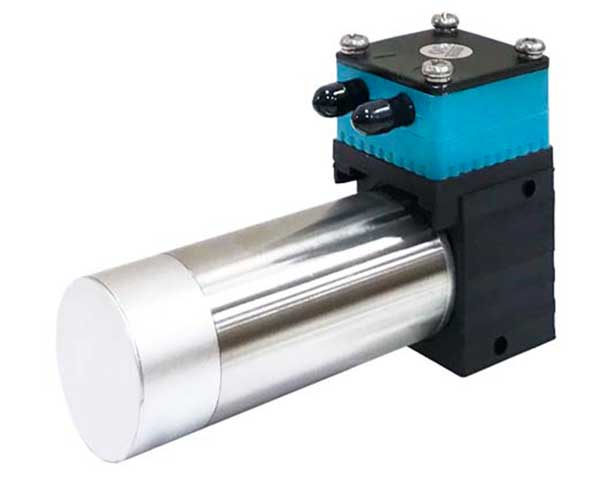

Mini water pump│DC water pump│DC-05WL-BL
Feature:
Lifetime:15000hr, Small and powerful, Lasts Reliably,Self-priming and excellent for pressure,Dry running, durable and maintenance free
Application:
Industrial vacuum applications,Portable Analytical Instruments,Medical Diagnostic Equipment,Environmental/water treatment,Laboratory, Cleaning industry, Printi
Product Specifications
| 規格項目 SPEC | 單位 UNIT | 規格值 SPEC.Value |
|---|---|---|
| 電壓 Rated Voltage | V | BLDC 6 or 12 or 24 |
| 最大水流量 Max. Water Flow | LPM | 0.4 |
| 揚程 Max Head | M | ≧10 |
| 安培值 Rated Current | A | 0.4 or 0.24 or 0.15 |
| 外型尺寸 Dimension | mm | 89 x 31 x 58 |
| 連接口徑 Connections | mm | Φ 4 |
| 重量 Weight | g | 250 |
| 馬達壽命 Reference lifetime | hours | 15000 |
| 噪音值 Level of noise | dB | 50 |
| 規格項目 SPEC | 單位 UNIT | 規格值 SPEC.Value |
|---|---|---|
| 電壓 Rated Voltage | V | BLDC 6 or 12 or 24 |
| 最大水流量 Max. Water Flow | LPM | 0.4 |
| 揚程 Max Head | M | ≧10 |
| 安培值 Rated Current | A | 0.4 or 0.24 or 0.15 |
| 外型尺寸 Dimension | mm | 89 x 31 x 58 |
| 連接口徑 Connections | mm | Φ 4 |
| 重量 Weight | g | 250 |
| 馬達壽命 Reference lifetime | hours | 15000 |
| 噪音值 Level of noise | dB | 50 |

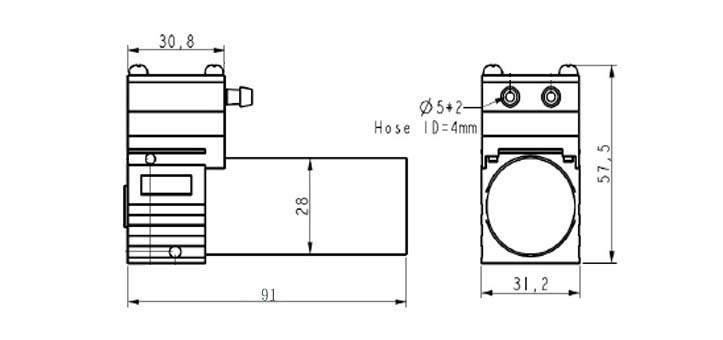

Product Dimensions
