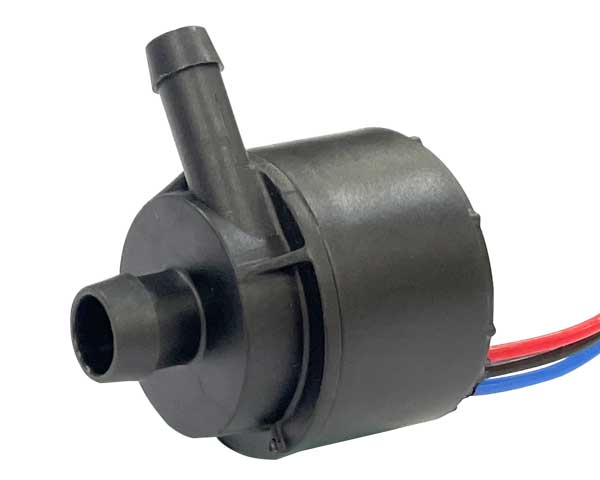

The pump DC-1.5W-BL is a DC Water Pump, which is used for the motion of liquids. It is characterized by its high reliability and performance with small size of 39,2 x 27 mm. It operates at DC 12.0V voltage with 150 mA current. The pumps are used in gastronomy industry, for example in beer taps, water filters or water suspenders, but also in household applications. DC-1.5W-BL
Feature：
Liquid Temperature 5-100°C, Continuous working mode, Stable and lower vibration, Low power consumption, Oil-free operation, No/low maintenance, High efficiency with long, Brushless motor lifetime 20,000hours.
Application：
Industrial devices, Electric shower, Circulation systems, Cleaning equipment, Water treatment, Dish washer/ Aquariums
Certification：
SO、ROHS2、FDA
Product Specifications
| 規格項目 SPEC | 單位 UNIT | 規格值 SPEC.Value |
|---|---|---|
| 額定電壓 Rated Voltage | V | BLDC 12 |
| 最大揚程 Max.Pressure Height | mH2O | 0.8 |
| 最大流量 Max. Flow | L/min | 1.5 |
| 液體溫度 Liquid Temperature | °C | 5-100 |
| 安培值 Max Current | A | 0.3 |
| 消耗功率 Power Consumption | W | 2.7 |
| 外型尺寸 Dimension | mm | 38.5 x 27 |
| 馬達壽命 Reference lifetime | hours | 20000 |
| 噪音值 Level of noise | dB(A) | <35 |
| 規格項目 SPEC | 單位 UNIT | 規格值 SPEC.Value |
|---|---|---|
| 額定電壓 Rated Voltage | V | BLDC 12 |
| 最大揚程 Max.Pressure Height | mH2O | 0.8 |
| 最大流量 Max. Flow | L/min | 1.5 |
| 液體溫度 Liquid Temperature | °C | 5-100 |
| 安培值 Max Current | A | 0.3 |
| 消耗功率 Power Consumption | W | 2.7 |
| 外型尺寸 Dimension | mm | 38.5 x 27 |
| 馬達壽命 Reference lifetime | hours | 20000 |
| 噪音值 Level of noise | dB(A) | <35 |

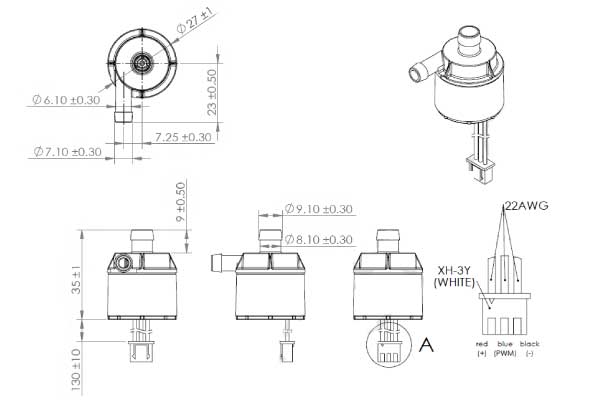

Product Dimensions
