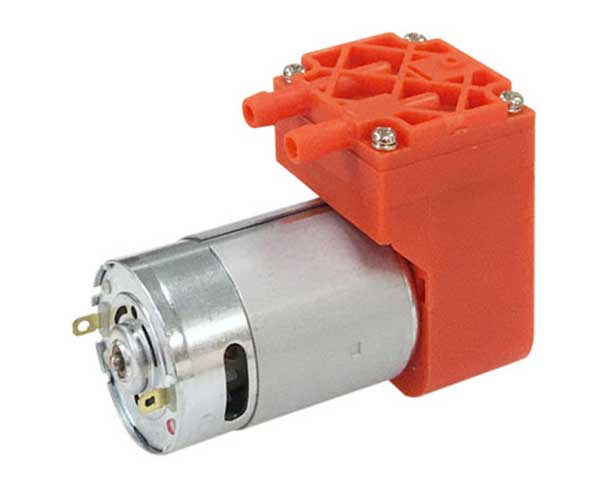

Oil Vacuum Pump│DC Mini Air Pump│DC-12VD
Feature:
Can be used as vacuum,Oilless operation,Compact design,Low noise level,Low pulsation
Application:
Medical application,Beauty apparatus,Household appliances,Various application,Widely used in Humidifier,Medical equipment,etc.
Product Specifications
| 規格項目 SPEC | 單位 UNIT | 規格值 SPEC.Value |
|---|---|---|
| 電壓 Rated Voltage | V | DC 12 or 24 |
| 最大真空度 Maximum vacuum | mmHg | 400 |
| 最大流量 Open Flow | LPM | ≧ 10 |
| 消耗功率 Power Consumption | W | 9.6 |
| 外型尺寸 Dimension | mm | 89 x 38.2 x 63 |
| 適用內徑軟管 Hose ID Suggestion | mm | Φ 6 |
| 重量 Weight | g | 300 |
| 馬達壽命 Reference lifetime | hours | >2000 |
| 規格項目 SPEC | 單位 UNIT | 規格值 SPEC.Value |
|---|---|---|
| 電壓 Rated Voltage | V | DC 12 or 24 |
| 最大真空度 Maximum vacuum | mmHg | 400 |
| 最大流量 Open Flow | LPM | ≧ 10 |
| 消耗功率 Power Consumption | W | 9.6 |
| 外型尺寸 Dimension | mm | 89 x 38.2 x 63 |
| 適用內徑軟管 Hose ID Suggestion | mm | Φ 6 |
| 重量 Weight | g | 300 |
| 馬達壽命 Reference lifetime | hours | >2000 |
Product Performance

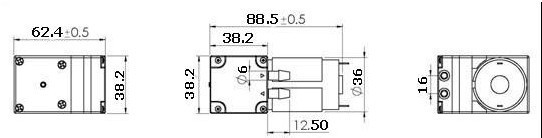

Product Dimensions
