Oil Vacuum Pump│DC Mini Air Pump│DC-4.5VD
Feature:
Highest Performance/Size Ratio, Uncontaminated flow,Performs Quieter, High level of gas tightness,Brush DC Motor Membrane Gas/Air Pump
Application:
Industrial pressure and vacuum applications,Air Quality Sampling Monitors, Respiration Monitors,Medical Diagnostic Equipment
Product Specifications
| 規格項目 SPEC | 單位 UNIT | 規格值 SPEC.Value |
|---|---|---|
| 電壓 Rated Voltage | V | DC 6 or 12 or 24 |
| 最大真空度 Maximum vacuum | mmHg | 450 |
| 最大壓力 Pressure | kgf/cm2 | 0.9 |
| 最大流量 Open Flow | LPM | 3.2 |
| 消耗功率 Power Consumption | W | 2.8 |
| 外型尺寸 Dimension | mm | 75 x 31 x 58 |
| 適用內徑軟管 Hose ID Suggestion | mm | Φ 4 |
| 重量 Weight | g | 150 |
| 馬達壽命 Reference lifetime | hours | 1200 |
| 規格項目 SPEC | 單位 UNIT | 規格值 SPEC.Value |
|---|---|---|
| 電壓 Rated Voltage | V | DC 6 or 12 or 24 |
| 最大真空度 Maximum vacuum | mmHg | 450 |
| 最大壓力 Pressure | kgf/cm2 | 0.9 |
| 最大流量 Open Flow | LPM | 3.2 |
| 消耗功率 Power Consumption | W | 2.8 |
| 外型尺寸 Dimension | mm | 75 x 31 x 58 |
| 適用內徑軟管 Hose ID Suggestion | mm | Φ 4 |
| 重量 Weight | g | 150 |
| 馬達壽命 Reference lifetime | hours | 1200 |

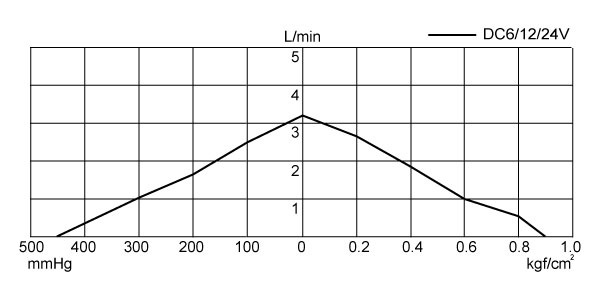

Product Performance

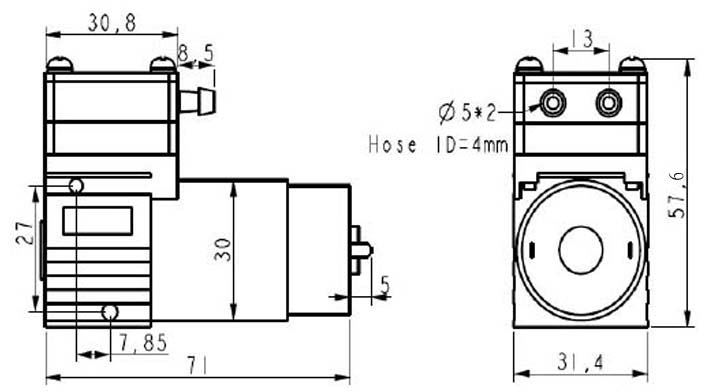

Product Dimensions
