DC-6.5SPC-BL Compact Air Sampling Pump | BLDC Diaphragm Pump for OEM Gas Analyzer Integration
Feature：
◆ Single-head design optimized for stable and continuous flow output
◆ Low power consumption, ideal for 24V DC systems
◆ BLDC motor provides quiet operation and long lifespan
◆ Compact size for embedded OEM applications
◆ Stable suction performance for precision gas sampling
◆ Suitable for portable or fixed gas monitoring devices
Materials for Weakly Corrosive Gases：
Pump head: PPS
Diaphragm: EPDM
Valves / Seals: FKM
Application：
◆ Gas analyzers (NDIR / electrochemical)
◆ Air quality monitoring systems
◆ Portable gas sampling devices
◆ VOC monitoring instruments
◆ OEM gas sensing modules
◆ Laboratory analytical instruments
Suitable Gas Types (Mild Corrosion)：
✔ Ambient air
✔ CO₂, O₂, N₂
✔ Low concentration NOx
✔ Low-corrosive VOC gases
✖ Not recommended
Corrosive acid gases
High humidity condensing gases
Product Specifications
| 規格項目 SPEC | 單位 UNIT | 規格值 SPEC.Value |
|---|---|---|
| 電壓 Rated Voltage | V | BLDC 24 |
| 最大真空 Max.Vacuum | mmHg | 550 |
| 最大壓力 Max. Pressure | kgf/cm2 | 1.6 |
| 最大流量 Open Flow | LPM | 6.5 |
| 消耗功率 Power Consumption | W | 14 |
| 外型尺寸 Dimension | mm | 108 x 46 x 82 |
| 安裝尺寸 Installation Size | mm | 16 x 35 (M4) |
| 安裝口徑 I.D. of screw thread | G 1/8" | |
| 重量 Weight | kg | 0.5 |
| 允許介質溫度 Permissible Medium Temperature | °C | 5~40 |
| 材質說明 Material | Pump head PPS、Diaphragm EPDM、Valves FKM、Gasket FKM | |
| 馬達壽命 Reference Lifetime | hours | Vacuum: 10,000 Pressure: 8,000 |
| 規格項目 SPEC | 單位 UNIT | 規格值 SPEC.Value |
|---|---|---|
| 電壓 Rated Voltage | V | BLDC 24 |
| 最大真空 Max.Vacuum | mmHg | 550 |
| 最大壓力 Max. Pressure | kgf/cm2 | 1.6 |
| 最大流量 Open Flow | LPM | 6.5 |
| 消耗功率 Power Consumption | W | 14 |
| 外型尺寸 Dimension | mm | 108 x 46 x 82 |
| 安裝尺寸 Installation Size | mm | 16 x 35 (M4) |
| 安裝口徑 I.D. of screw thread | G 1/8" | |
| 重量 Weight | kg | 0.5 |
| 允許介質溫度 Permissible Medium Temperature | °C | 5~40 |
| 材質說明 Material | Pump head PPS、Diaphragm EPDM、Valves FKM、Gasket FKM | |
| 馬達壽命 Reference Lifetime | hours | Vacuum: 10,000 Pressure: 8,000 |

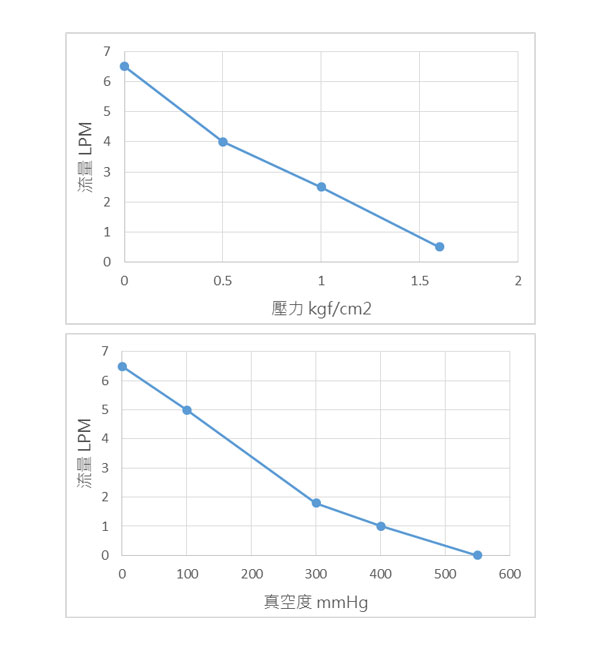

Product Performance

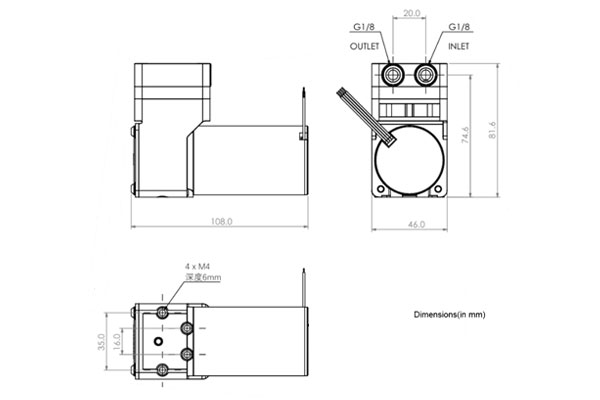

Product Dimensions
