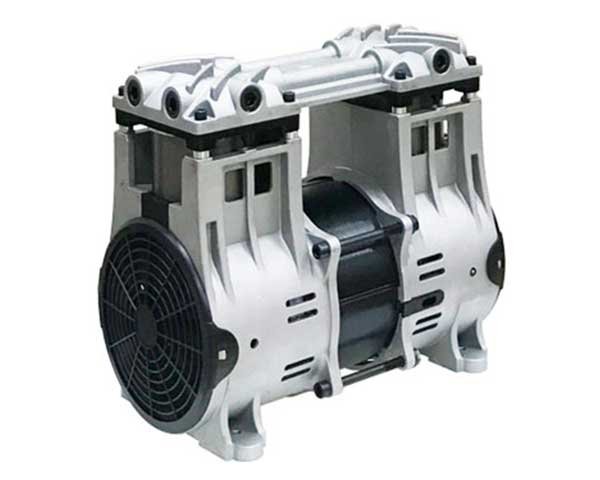

Oilless Vacuum Pump UN-350V A high pressure unit that can be used on tank systems as well as in
laboratories on ‘rough’ vacuum duties.

Feature：
Permanently lubricated bearings, Oil-less, non-lubricated cup and cylinder, Long-life cup design, Thin wall cylinder for good heat transfer, Stainless steel valves, Recoverable thermally protected motor

Application：
Laboratory, Processing machine, LED test machine, Printing machine

Certification：
CE EMC Certification
EN 55014-1:2017/A11:2020
EN 55014-2:2015
EN IEC 6100-3-2:2019/A1:2021
EN 61000-3-3:2013/A1:2019

CE LVD Certification
EN 60335-1: 2012+A13:2017
EN 60335-2-34:2013

Product Specifications

規格項目 SPEC	單位 UNIT	規格值 SPEC.Value
電壓 Rated Voltage	V	AC 110 or 220

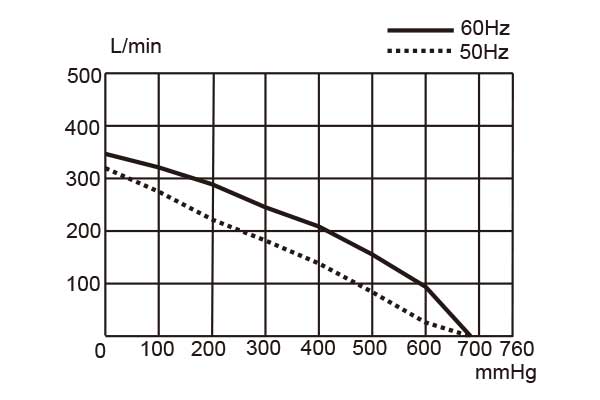

最大真空度 Max.Vacuum	mmHg	680
最大流量 Open Flow	LPM	350(60Hz) /320(50Hz)
消耗功率 Power Consumption	W	1500

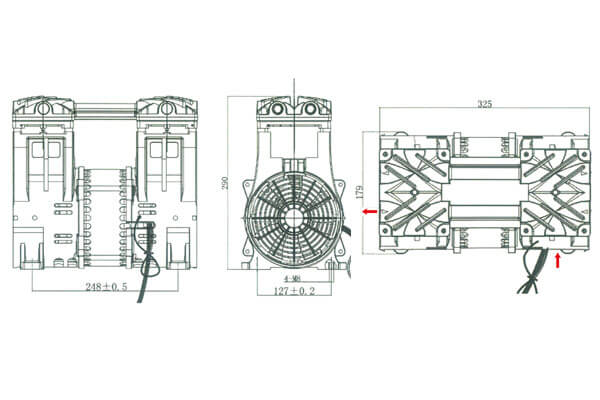

外型尺寸 Dimension	mm	325 x 179 x 290
安裝尺寸 Installation Size	mm	248 x 127 x M8
安裝口徑 I.D. of screw thread	PT	1/2"
重量 Weight	kg	22
