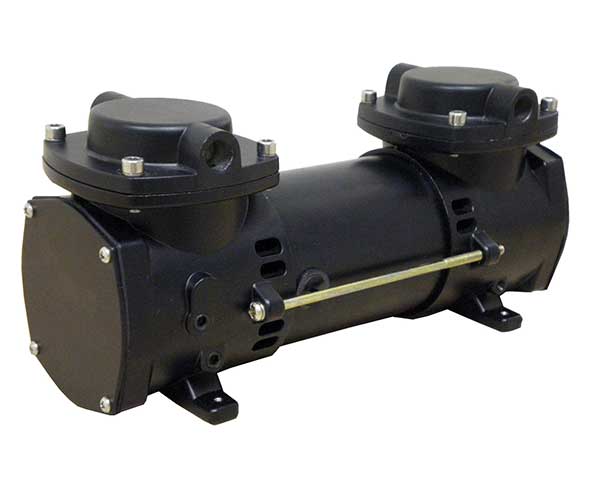

Air compressor 12v│DC air compressor│DC-70VD
Feature:
Can be used as vacuum & Air compressor,Diaphragms
Application:
Medical Equipment、Environmental testing,Various application
Product Specifications
| 規格項目 SPEC | 單位 UNIT | 規格值 SPEC.Value |
|---|---|---|
| 電壓 Rated Voltage | V | DC 24 |
| 最大真空度 Vacuum | mmHg | 600 |
| 最大壓力 Pressure | kgf/cm2 | 3 |
| 最大流量 Open Flow | LPM | 70 |
| 消耗電流 Rated Current | A | 6.5 |

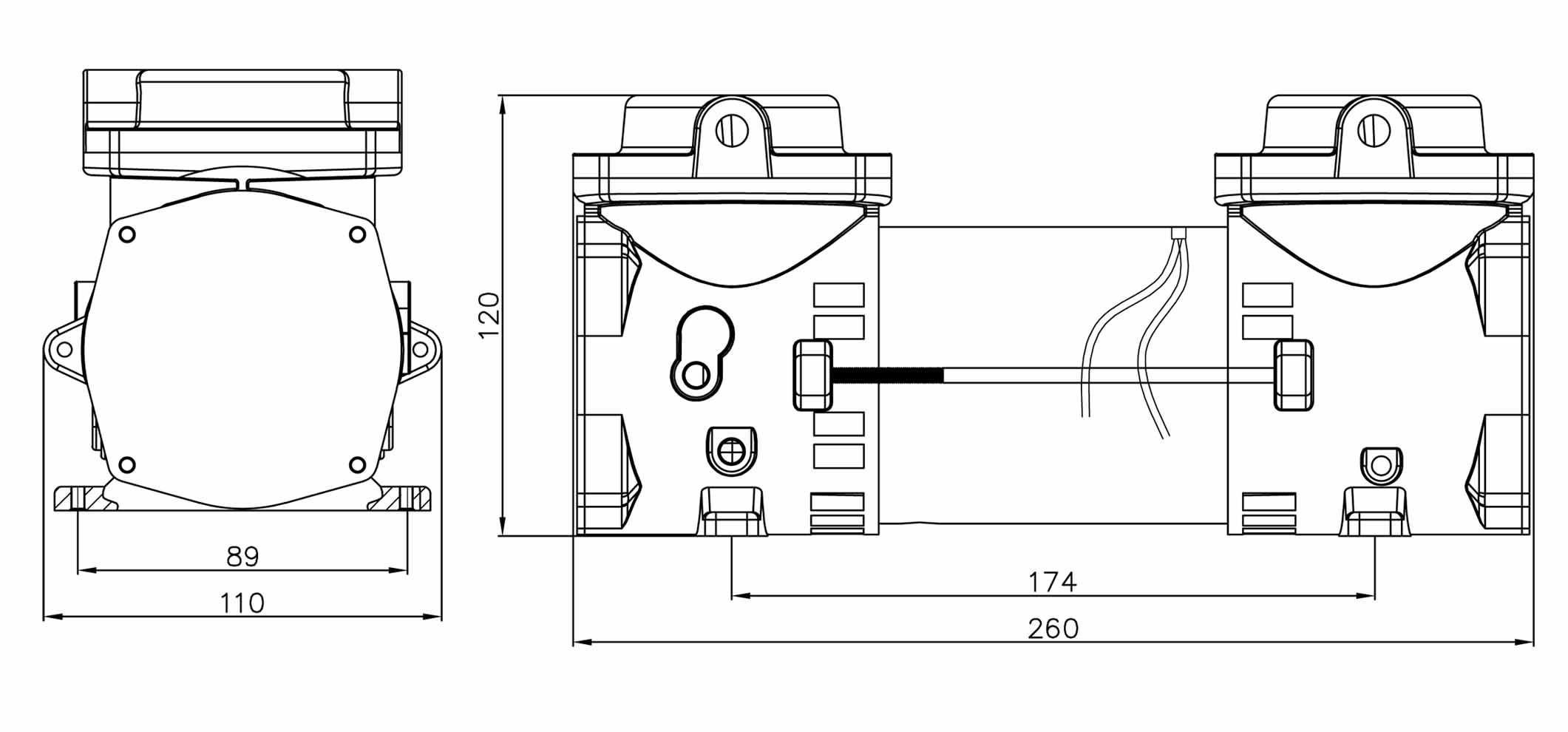

| 外型尺寸 Dimension | mm | 260 x 120 x 110 |
| 安裝口徑 I.D. of screw thread | PT | 1/4" |
| 重量 Weight | kg | 3.2 |
| 馬達壽命 Reference lifetime | hours | >3000 |
| 規格項目 SPEC | 單位 UNIT | 規格值 SPEC.Value |
|---|---|---|
| 電壓 Rated Voltage | V | DC 24 |
| 最大真空度 Vacuum | mmHg | 600 |
| 最大壓力 Pressure | kgf/cm2 | 3 |
| 最大流量 Open Flow | LPM | 70 |
| 消耗電流 Rated Current | A | 6.5 |
| 外型尺寸 Dimension | mm | 260 x 120 x 110 |
| 安裝口徑 I.D. of screw thread | PT | 1/4" |
| 重量 Weight | kg | 3.2 |
| 馬達壽命 Reference lifetime | hours | >3000 |
Product Performance
