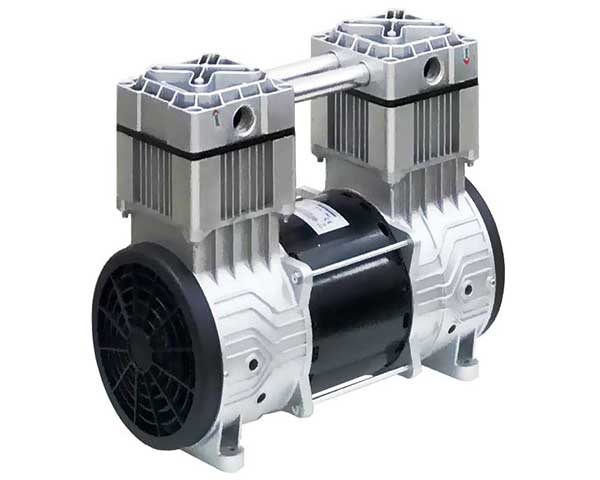

Best oil-less air compressor, Oilless air compressor(Industrial air compressor) UN-300P
Feature：
Can be used as Air compressor,Oil free air compressor, Large discharge
Application：
Cutting Welding, Atomizing Machine,Medical application,Various machineries assembly
Certification：
CE EMC Certification
EN 55014-1:2017/A11:2020
EN 55014-2:2015
EN IEC 6100-3-2:2019/A1:2021
EN 61000-3-3:2013/A1:2019
CE LVD Certification
EN 60335-1: 2012+A13:2017
EN 60335-2-34:2013
Product Specifications
| 規格項目 SPEC | 單位 UNIT | 規格值 SPEC.Value |
|---|---|---|
| 電壓 Rated Voltage | V | AC 110 or 220 |
| 最大壓力 Pressure | kgf/cm2 | 8 |
| 最大流量 Open Flow | LPM | 320(60Hz)/256(50Hz) |
| 消耗功率 Power Consumption | W | 1800 |
| 外型尺寸 Dimension | mm | 335 x 150 x 298.6 |
| 安裝尺寸 Installation Size | mm | 261 x 127 x M8 |
| 安裝口徑 I.D. of screw thread | PT | 1/2" |
| 重量 Weight | kg | 17.5 |
| 規格項目 SPEC | 單位 UNIT | 規格值 SPEC.Value |
|---|---|---|
| 電壓 Rated Voltage | V | AC 110 or 220 |
| 最大壓力 Pressure | kgf/cm2 | 8 |
| 最大流量 Open Flow | LPM | 320(60Hz)/256(50Hz) |
| 消耗功率 Power Consumption | W | 1800 |
| 外型尺寸 Dimension | mm | 335 x 150 x 298.6 |
| 安裝尺寸 Installation Size | mm | 261 x 127 x M8 |
| 安裝口徑 I.D. of screw thread | PT | 1/2" |
| 重量 Weight | kg | 17.5 |
What I Need to Know Before Buying a Oilless air compressor: Questions to Ask Yourself
1. What is the Application?
2. What Air Tools Will You Be Using?
3. How Often Will You Use the Air Compressor?
4. Where Will You Store and Use the Compressor?
5. What Type of Power is Available?
6. How Much Pressure Do You Need?
7. How Much Airflow Do You Need?
8. What Compressor Features Might You Want to Consider? (Air dryer, Filters)

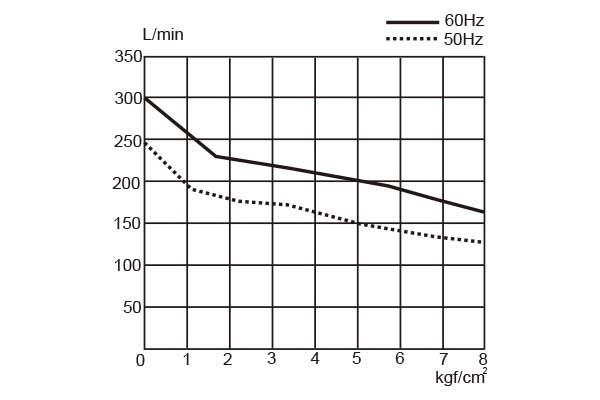

Product Performance

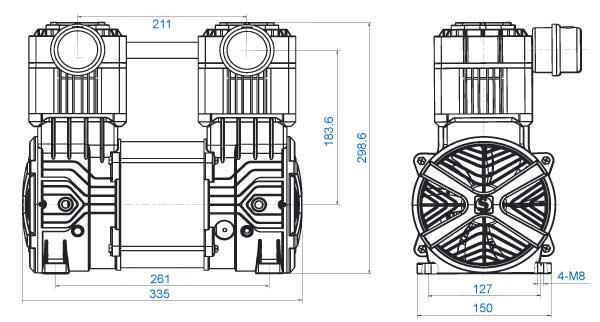

Product Dimensions
