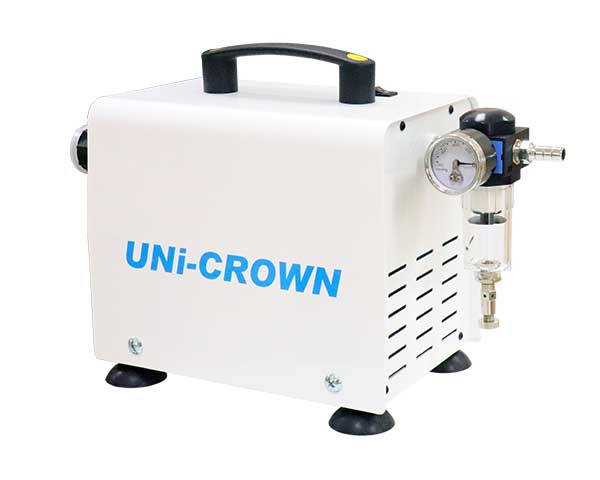

LAB-30 Our lab vacuum pump, Max Vacuum 660mmHg Max Flow 50LPM
Oilless vacuum pump can always replace oil vacuum pumps, because it brings convenience and makes the environment cleaner. Doesn’t need regular maintenance. The pump can pull a vacuum strong enough for most lab or industrial work. The box lab vacuum pump is compact and easy to store when not in use.and can be save space. It is built with sturdy lab-quality materials meant to last for years.
Feature：
Oilless design, no pollution generated, Low vibration and low noise emission, Compact and easy carry design
Application：
Cupping machine, Filtration,Medical / Laboratory instruments, Health care devices, Vacuum suction pen, Solid phase extractor, Thin layer color developing spray, solvent filter, Air sampler essential oils, Ee-juice, home-brewing and more.
Product Specifications
| 規格項目 SPEC | 單位 UNIT | 規格值 SPEC.Value |
|---|---|---|
| 電壓 Rated Voltage | V | AC 110 or 220 |
| 最大真空度 Maximum vacuum | mmHg | 660 |
| 最大流量 Open Flow | L/min | 50(60Hz) / 40(50Hz) |
| 馬力 HP | HP | 1/4 |
| 消耗功率 Power Consumption | W | 180 |
| 外型尺寸 Dimension | mm | 370 x 170 x 256 |
| 重量 Weight | kg | 8.5 |
| 噪音值 Noise Level | dB | 50 |
| 規格項目 SPEC | 單位 UNIT | 規格值 SPEC.Value |
|---|---|---|
| 電壓 Rated Voltage | V | AC 110 or 220 |
| 最大真空度 Maximum vacuum | mmHg | 660 |
| 最大流量 Open Flow | L/min | 50(60Hz) / 40(50Hz) |
| 馬力 HP | HP | 1/4 |
| 消耗功率 Power Consumption | W | 180 |
| 外型尺寸 Dimension | mm | 370 x 170 x 256 |
| 重量 Weight | kg | 8.5 |
| 噪音值 Noise Level | dB | 50 |

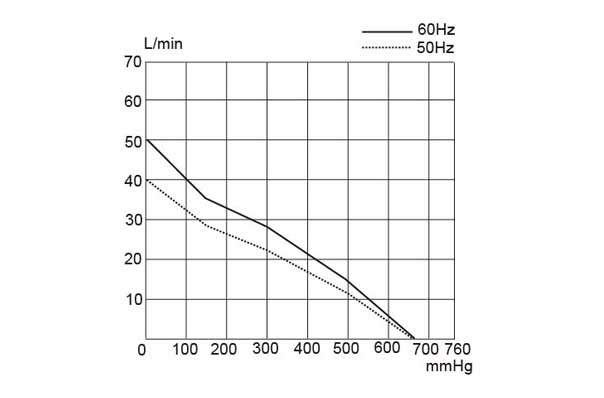

Product Performance
Product Dimensions
