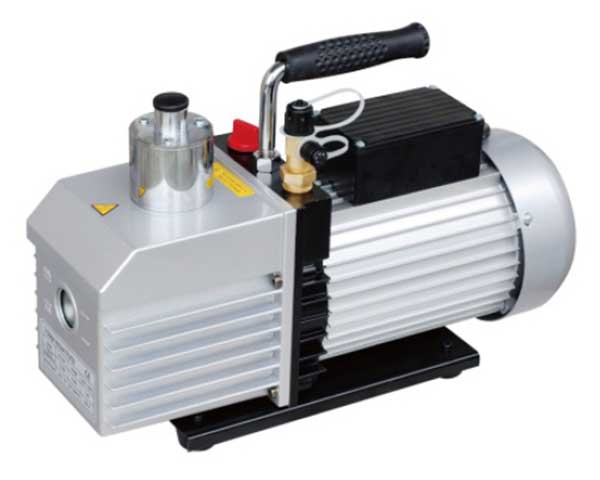

OLD-20-VD 5 CFM Single-Stage Rotary Vane Vacuum Pump(Vacuum Pumps For Ac) Vacuum 3×10-1pa
Features:
Higher Ultimate Vacuum, Forced oil cycling system, portable, Forced oil cycling system, Heavy-duty Aluminum Alloy Casing, Big sight glass for monitoring oil level, Integrated body structure, Top oil fill port(Better access when refilling oil) Solid rubber base provides extreme shock resistance, Sure grip handle ergonomically designed for superior comfort and portability, ON/OFF Switch, Exhaust Port with Exhaust Cap
Applications:
Air Conditioning, Various lab, instruments, Refrigeration repair, Various Automatic machines, Vacuum packing and deaeration, Printing Machinery, Gas-analysis and Hot-forming plastic, Jewellery Making/gluing Jobs etc.
Product Specifications
| 規格項目 SPEC | 單位 UNIT | 規格值 SPEC.Value |
|---|---|---|
| 電壓 Rated Voltage | V | AC 110/220 |
| 最大真空度 Ultimate vacuum | pa | 3 x 10-1 |
| 排氣量 Flow Rate | L/min | 142(60Hz) / 128(50Hz) |
| 馬力 Power | HP | 1/2 |
| 注油量 Oil Capacity | ml | 330 |
| 外型尺寸 Dimension | mm | 335 x 138 x 250 |
| 轉速 Motor Speed | rpm | 1400 |
| 適用內徑軟管 Hose ID suggestion | mm | Φ12 |
| 重量 Weight | kg | 11.4 |
| 規格項目 SPEC | 單位 UNIT | 規格值 SPEC.Value |
|---|---|---|
| 電壓 Rated Voltage | V | AC 110/220 |
| 最大真空度 Ultimate vacuum | pa | 3 x 10-1 |
| 排氣量 Flow Rate | L/min | 142(60Hz) / 128(50Hz) |
| 馬力 Power | HP | 1/2 |
| 注油量 Oil Capacity | ml | 330 |
| 外型尺寸 Dimension | mm | 335 x 138 x 250 |
| 轉速 Motor Speed | rpm | 1400 |
| 適用內徑軟管 Hose ID suggestion | mm | Φ12 |
| 重量 Weight | kg | 11.4 |

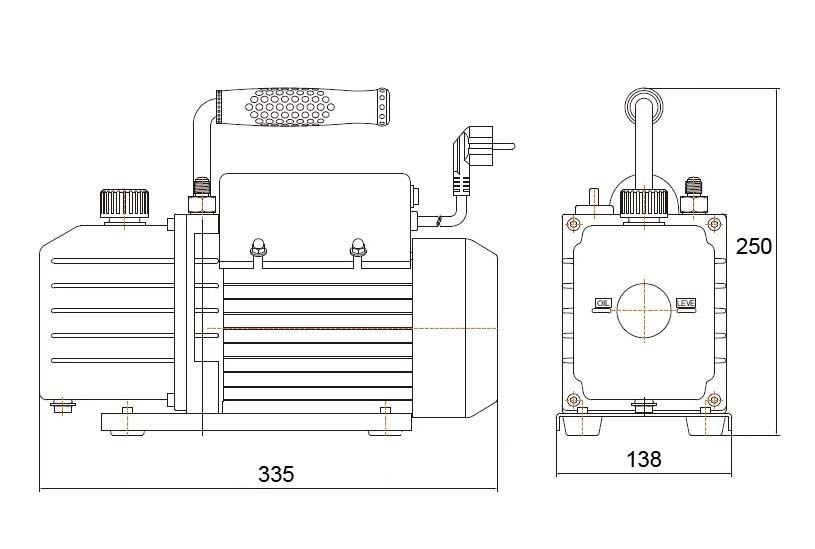

Product Dimensions
