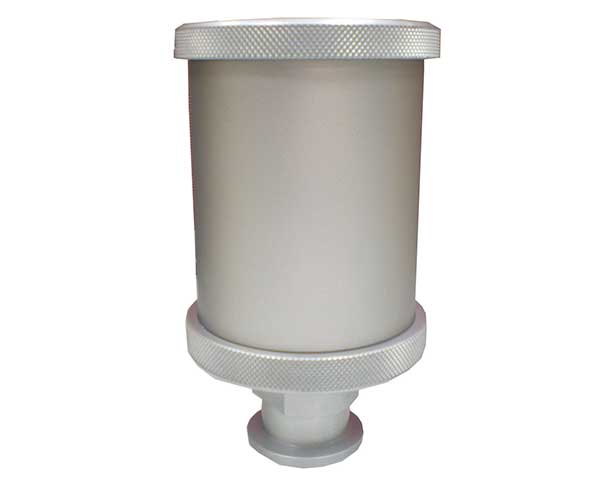

UNICROWN Trpas OME-25

OME-25

Handling Capacity: 300LPM

Contact
Catalog

Oil mist filter│Vacuum pump exhaust filter│OME-25

Feature:
Capure oil mist from the outlet of pumps,efficient at 99.99% of filtration.

Application:
Verious vacuum pumps for using in,Vacuum outgassing and freeze drying,Vacuum coating and metallizing,Medical industry and lab. Instruments,Industrial vacuum processing

Product Specifications

規格項目 SPEC單位 UNIT規格值 SPEC.Value
流量 FlowLPM300
重量 Weightkg0.53
安裝口徑 I.D. of screw threadNW25 、24mm、30mm
規格項目 SPEC單位 UNIT規格值 SPEC.Value
流量 FlowLPM300
重量 Weightkg0.53
安裝口徑 I.D. of screw threadNW25 、24mm、30mm

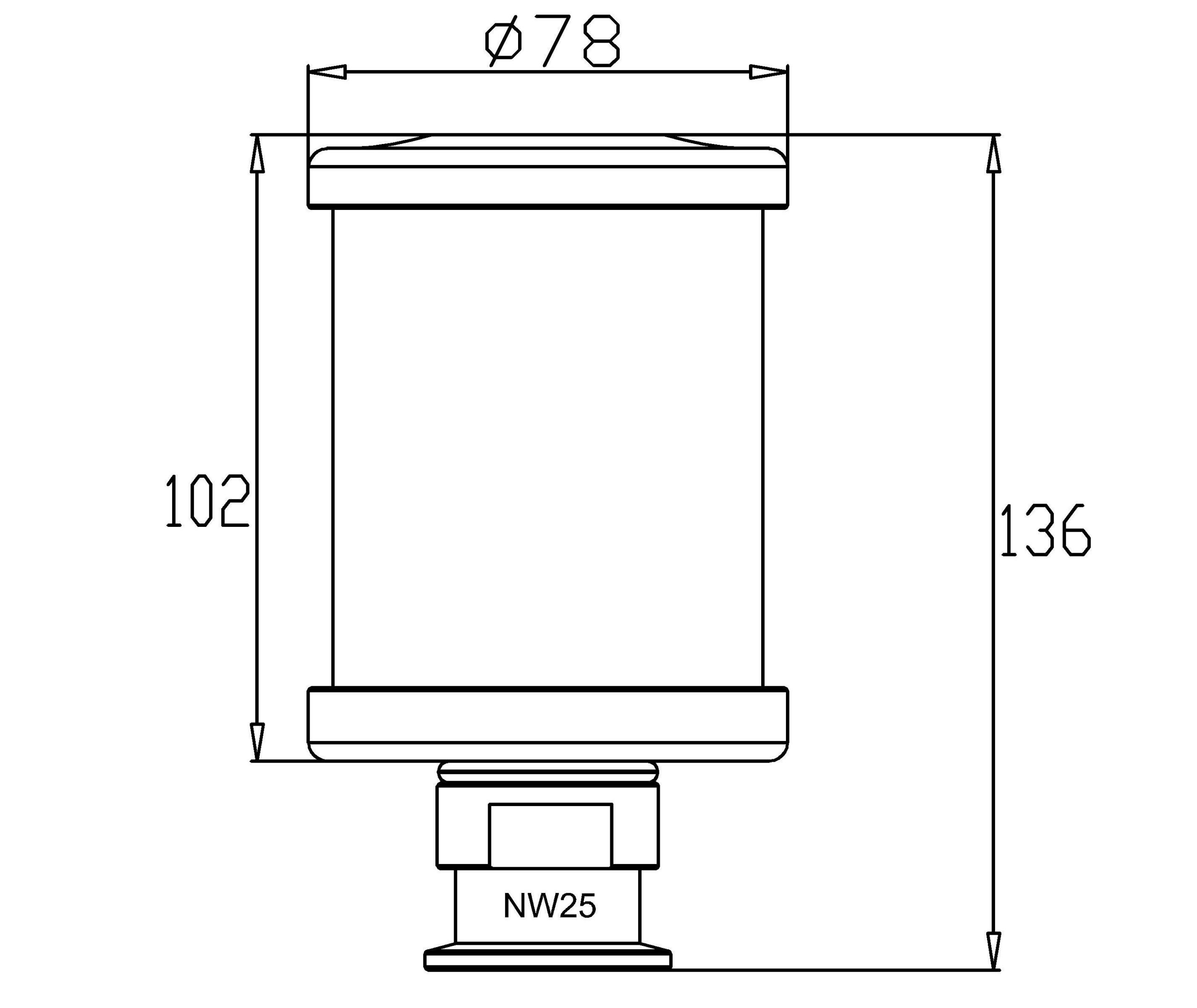

Product Dimensions


OME25-Dimensional-drawings
