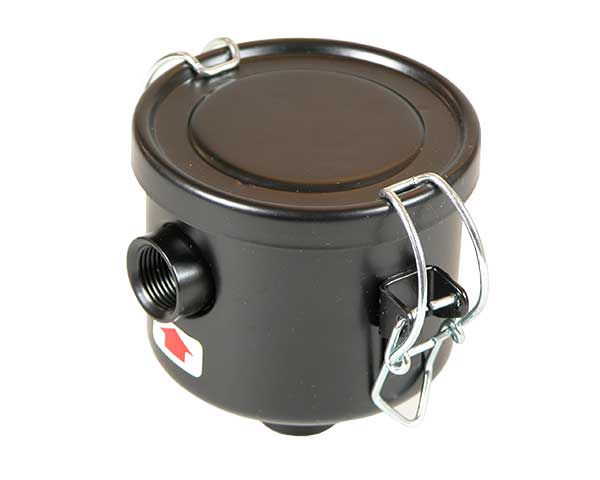

UNICROWN Vacuum Filters VF Series

VF Series

Filtration: 8~10μM
Flow: 24~1260m³/h

Features & Benefits

Vacuum filter│Vacuum filters│VF Series

Feature:
Rugged construction, Great filtration, Element is changable

Application:
Vacuum Packaging,Leak Detection, Ash Handling,Factory Automation, Woodworking, Cement

Product Specifications

型號 Code	氣處理量 m3/h	接管口徑 PT	濾心編號
VF.001	24	G. 3/8"	E.001
VF.002	42	G. 3/4"	E.002
VF.002/1	42	G. 1/2"	E.002/1
VF.003	108	G. 1" 1/4 (大型)	E.003
VF.004	96	G. 1" 1/4 (標準)	E.004
VF.005	192	G. 1" 1/2	E.005
VF.006	310	G. 2"	E.006
VF.006/1	360	G. 2" 1/2	E.006/1
VF.007	550	G. 3" (標準)	E.007
VF.008	720	G. 4" (標準)	E.008
VF.009	1080	G. 3" (大型)	E.009
VF.010	1260	G. 4" (大型)	E.010

型號 Code	氣處理量 m3/h	接管口徑 PT	濾心編號
VF.001	24	G. 3/8"	E.001
VF.002	42	G. 3/4"	E.002
VF.002/1	42	G. 1/2"	E.002/1
VF.003	108	G. 1" 1/4 (大型)	E.003
VF.004	96	G. 1" 1/4 (標準)	E.004
VF.005	192	G. 1" 1/2	E.005
VF.006	310	G. 2"	E.006
VF.006/1	360	G. 2" 1/2	E.006/1
VF.007	550	G. 3" (標準)	E.007
VF.008	720	G. 4" (標準)	E.008
VF.009	1080	G. 3" (大型)	E.009
VF.010	1260	G. 4" (大型)	E.010

Recommended Accessories
