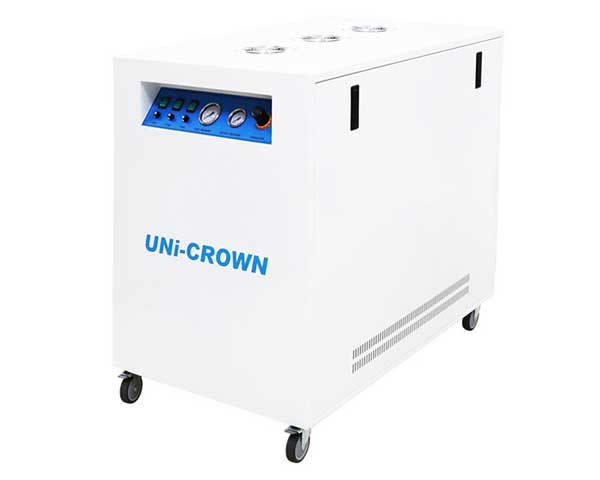

Quiet air compressor│Silent air compressor│Q-Air450
A silent air compressor is low in noise production compared with conventional units. Low noise improves the quality and safety of the work environment. In the case of dental air compressors, it improves the patient experience.
Super silent, Low vibration, Pure air flow, Oil-free pump for less maintenance & costs, Fashion and durable design, The tank has done with anti-rust treatment, Easy operation, Low energy consumption, High precision filtration, Use safety, with CE, FDA certificates.
Application:
Dental , Medical, Laboratory, Framing, Jewellery production, Anti-Vibration table, Green energy, Drinks dispensing, Food,
Science and communication technology, Industrial manufacturing, Beauty, Aerospace technology, Printing, Petroleum chemical industry, Experimental analysis.
Product Specifications
| 規格項目 SPEC | 單位 UNIT | Q-AIR450 規格值 SPEC.Value | Q-AIR450D with Air Dryer 規格值 SPEC.Value |
|---|---|---|---|
| 電壓 Rated Voltage | V | AC 220 | AC 220 |
| 最大壓力 Max. Pressure | kgf/cm2 | 7.5 | 7.5 |
| 最大流量 Open Flow | LPM | 465(60Hz)/372(50Hz) | 441 |
| 消耗功率 Power Consumption | W | 2400 | 2400 |
| 外型尺寸 Dimension | mm | 970 x 500 x 870 | 970 x 600 x 870 |
| 儲氣桶 Tank Volume | L | 90 | 90 |
| 安裝口徑 I.D. of screw thread | PT | 1/4" | 1/4" |
| 重量 Weight | kg | 120 | 135 |
| 噪音值 Noise Level | dB | 60 | 60 |
| 最佳環境溫度 Best ambient temperature | ℃ | -5 ~ 45 | -5 ~ 45 |
| 乾燥空氣露點溫度 Dry air dew point temperature | ℃ | X | -5 |
