Blower│Industrial blower│UC-RB075/1
Feature:
Low noise level, High air volume,Low vibration & Contamination free
Application:
Dust collecting plant, Aerator tank, Air Knives,Sewage treatment, Aquaculture, Adsorption,Chip Removal/Parts Blow Off, Liquid Agitation
Product Specifications
| 規格項目 SPEC | 單位 UNIT | 規格值 SPEC.Value | 規格值 SPEC.Value |
|---|---|---|---|
| 頻率 Frequency | Hz | 50 | 60 |
| 馬力 HP | HP | 1 | 1 |
| 消耗功率 Power Consumption | kw | 1.1 | 1.3 |
| 電壓 Rated Voltage | V | 115 / 230 | 115 / 230 |
| 定額電流 Rated Current | A | 14.6 / 7.3 | 16.6 / 8.3 |
| 最大風量 Maximum Flow | m3/h | 148 | 190 |
| 最大真空度 Maximum Vacuum | mbar | -180 | -180 |
| 最大壓力 Maximum Pressure | mbar | 190 | 190 |
| 口徑 Installation Diameter | inch | G1 1/2" | G1 1/2" |
| 噪音值 Noise | dB | 63 | 64 |
| 重量 Weight | kg | 16 | 16 |
| 規格項目 SPEC | 單位 UNIT | 規格值 SPEC.Value | 規格值 SPEC.Value |
|---|---|---|---|
| 頻率 Frequency | Hz | 50 | 60 |
| 馬力 HP | HP | 1 | 1 |
| 消耗功率 Power Consumption | kw | 1.1 | 1.3 |
| 電壓 Rated Voltage | V | 115 / 230 | 115 / 230 |
| 定額電流 Rated Current | A | 14.6 / 7.3 | 16.6 / 8.3 |
| 最大風量 Maximum Flow | m3/h | 148 | 190 |
| 最大真空度 Maximum Vacuum | mbar | -180 | -180 |
| 最大壓力 Maximum Pressure | mbar | 190 | 190 |
| 口徑 Installation Diameter | inch | G1 1/2" | G1 1/2" |
| 噪音值 Noise | dB | 63 | 64 |
| 重量 Weight | kg | 16 | 16 |

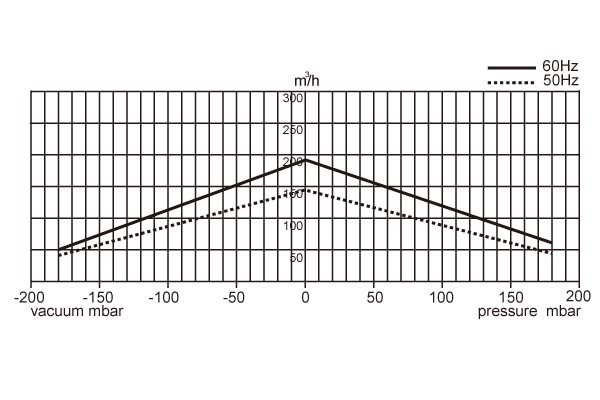

Product Performance

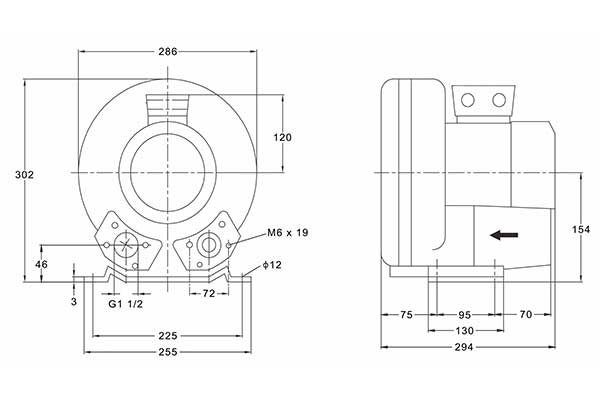

Product Dimensions
