Oilless air compressor do not experience a cost acquired from disposal of oil-laden condensate. This means you save both time and money by using an oil-free compressor. UN-120P Max Pressure：7kgf/cm2 Max Flow：120LPM
Feature：
Lower cost, Less maintenance, Environmentally friendly (The compressor’s absence of oil is eco-friendly because the machine doesn’t release pollutants into the atmosphere. These substances can harm both the environment and your workers.), Diminished risk of contamination (Oil-free compressors are often required in fields like food and medicine, where oil-free, clean air is essential.)
Traditional oil air compressor maintenance is somewhat involved. These machines require routine oil changes, which means you also have to dispose of this oil. This action costs more money and time. You also have to remove oil aerosols, for which you’ll need filtration and oil and air separator elements. With oil-free air compressors, you don’t have to do any of these tedious chores.
Application：
Food and beverage production requires sanitary compressed air, Laboratory professionals use pneumatic tools to portion ingredients exactly per their formulas, sprays crop seeds, operates dairy machines, ventilates greenhouses.
Certification：
CE EMC Certification
EN 55014-1:2006+A1:2009+A2:2011
EN 55014-2:2015
EN 61000-3-2:2014
EN 61000-3-3:2013
CE LVD Certification
EN 60335-1: 2012+A13:2017
EN 60335-2-80: 2003+A1:2004+A2:2009
RoHS Certification
Product Specifications
| 規格項目 SPEC | 單位 UNIT | 規格值 SPEC.Value |
|---|---|---|
| 電壓 Rated Voltage | V | AC 110 or 220 |
| 最大壓力 Pressure | kgf/cm2 | 7 |
| 最大流量 Open Flow | LPM | 120(60Hz) / 100(50Hz) |
| 消耗功率 Power Consumption | W | 600 |
| 外型尺寸 Dimension | mm | 238 x 130 x 186 |
| 安裝尺寸 Installation Size | mm | 203.5 x 89 x M6 |
| 安裝口徑 I.D. of screw thread | PT | 1/4" |
| 重量 Weight | kg | 7.5 |
| 規格項目 SPEC | 單位 UNIT | 規格值 SPEC.Value |
|---|---|---|
| 電壓 Rated Voltage | V | AC 110 or 220 |
| 最大壓力 Pressure | kgf/cm2 | 7 |
| 最大流量 Open Flow | LPM | 120(60Hz) / 100(50Hz) |
| 消耗功率 Power Consumption | W | 600 |
| 外型尺寸 Dimension | mm | 238 x 130 x 186 |
| 安裝尺寸 Installation Size | mm | 203.5 x 89 x M6 |
| 安裝口徑 I.D. of screw thread | PT | 1/4" |
| 重量 Weight | kg | 7.5 |
What I Need to Know Before Buying a Oilless air compressor: Questions to Ask Yourself
1. What is the Application?
2. What Air Tools Will You Be Using?
3. How Often Will You Use the Air Compressor?
4. Where Will You Store and Use the Compressor?
5. What Type of Power is Available?
6. How Much Pressure Do You Need?
7. How Much Airflow Do You Need?
8. What Compressor Features Might You Want to Consider? (Air dryer, Filters)

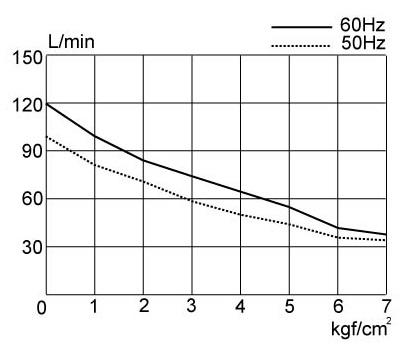

Product Performance

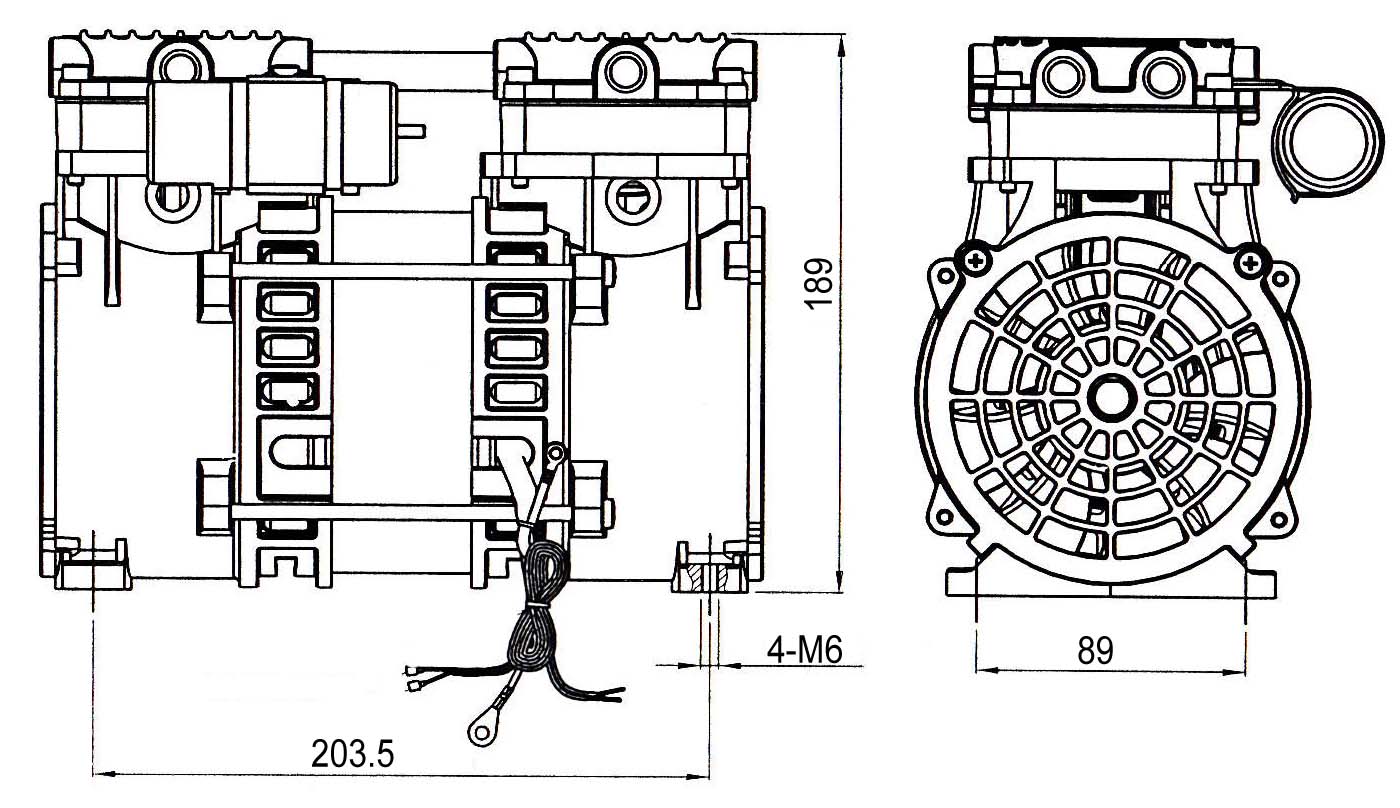

Product Dimensions
