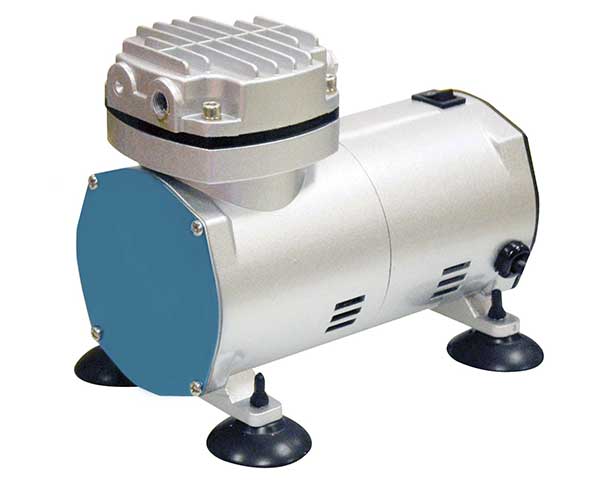

Industrial air compressor│Oilless air compressor│UN-25P
Feature:
Low voltage, Can be used as Air compressor, Large discharge
Application:
Medical / Various application, Various pressure applications
Product Specifications
| 規格項目 SPEC | 單位 UNIT | 規格值 SPEC.Value |
|---|---|---|
| 電壓 Rated Voltage | V | AC 110 or 220 |
| 最大真空度 Max.Vacuum | mmHg | 600 |
| 最大壓力 Pressure | kgf/cm2 | 3.5~4 |
| 最大流量 Open Flow | LPM | 24(60Hz) /19(50Hz) |
| 消耗功率 Power Consumption | W | 125 |
| 外型尺寸 Dimension | mm | 215 x 135 x 170 |
| 安裝口徑 I.D. of screw thread | inch | 1/8"PT牙 |
| 重量 Weight | kg | 2.85 |
| 規格項目 SPEC | 單位 UNIT | 規格值 SPEC.Value |
|---|---|---|
| 電壓 Rated Voltage | V | AC 110 or 220 |
| 最大真空度 Max.Vacuum | mmHg | 600 |
| 最大壓力 Pressure | kgf/cm2 | 3.5~4 |
| 最大流量 Open Flow | LPM | 24(60Hz) /19(50Hz) |
| 消耗功率 Power Consumption | W | 125 |
| 外型尺寸 Dimension | mm | 215 x 135 x 170 |
| 安裝口徑 I.D. of screw thread | inch | 1/8"PT牙 |
| 重量 Weight | kg | 2.85 |
Product Performance
