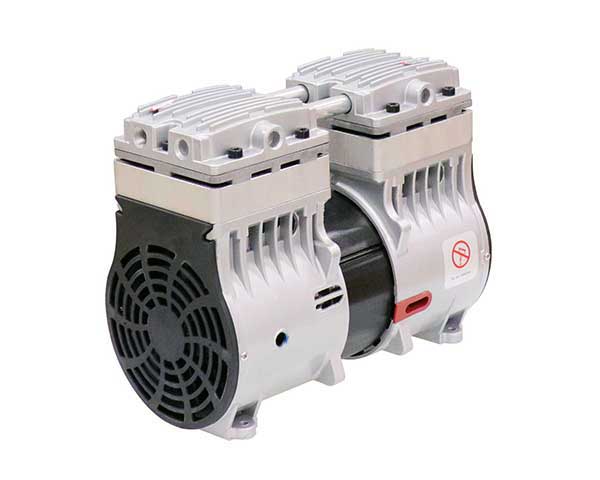

UN-180V oilless vacuum pump is ideal for manufacturing and industrial markets applications, but should be considered for specific medical, laboratory, and Food & Beverage applications as well. Max Vacuum：680mmHg Max Flow：170LPM
Feature：
CE/RoHS Certification, All Wetted Aluminum,Non-lube Piston and Cylinder, Low Vibration,Parts Treated For Corrosion Protection From Moisture,One Year Warranty Provided
Application：
Laminator/LED test machine, Robotic arms,Vacuum packing, Milker Machine, Fitting/packaging machine, Medical/Dental offices, Laboratory and Workshop Applications
Certification：
CE EMC Certification
EN 55014-1:2006+A1:2009+A2:2011
EN 55014-2:2015
EN 61000-3-2:2014
EN 61000-3-3:2013
CE LVD Certification
EN 60335-1: 2012+A13:2017
EN 60335-2-80: 2003+A1:2004+A2:2009
RoHS Certification
Product Specifications
| 規格項目 SPEC | 單位 UNIT | 規格值 SPEC.Value |
|---|---|---|
| 電壓 Rated Voltage | V | AC 110 or 220 |
| 最大真空度 Max.Vacuum | mmHg | 680 |
| 最大流量 Open Flow | LPM | 170(60Hz) / 158(50Hz) |
| 消耗功率 Power Consumption | W | 500 |
| 外型尺寸 Dimension | mm | 250 x 128 x 203 |
| 安裝尺寸 Installation Size | mm | 203.5 x 89 x M6 |
| 安裝口徑 I.D. of screw thread | PT | 1/4" |
| 重量 Weight | kg | 9.2 |
| 規格項目 SPEC | 單位 UNIT | 規格值 SPEC.Value |
|---|---|---|
| 電壓 Rated Voltage | V | AC 110 or 220 |
| 最大真空度 Max.Vacuum | mmHg | 680 |
| 最大流量 Open Flow | LPM | 170(60Hz) / 158(50Hz) |
| 消耗功率 Power Consumption | W | 500 |
| 外型尺寸 Dimension | mm | 250 x 128 x 203 |
| 安裝尺寸 Installation Size | mm | 203.5 x 89 x M6 |
| 安裝口徑 I.D. of screw thread | PT | 1/4" |
| 重量 Weight | kg | 9.2 |

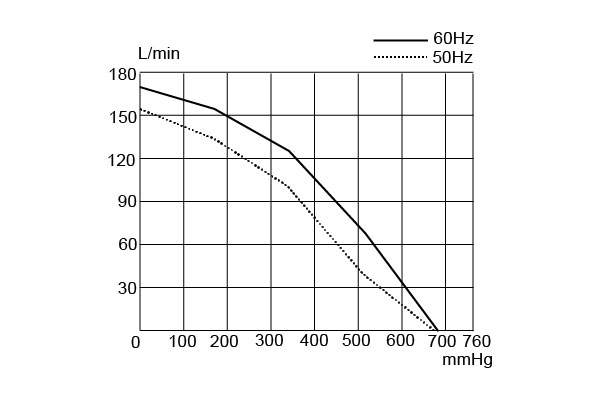

Product Performance

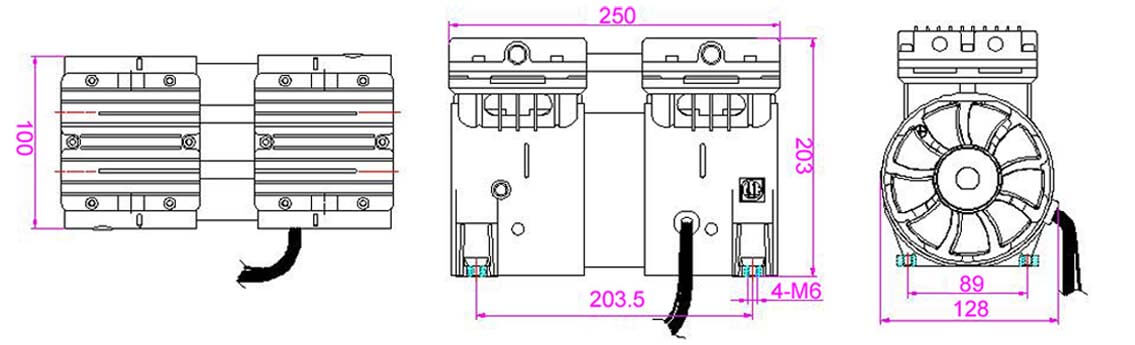

Product Dimensions
