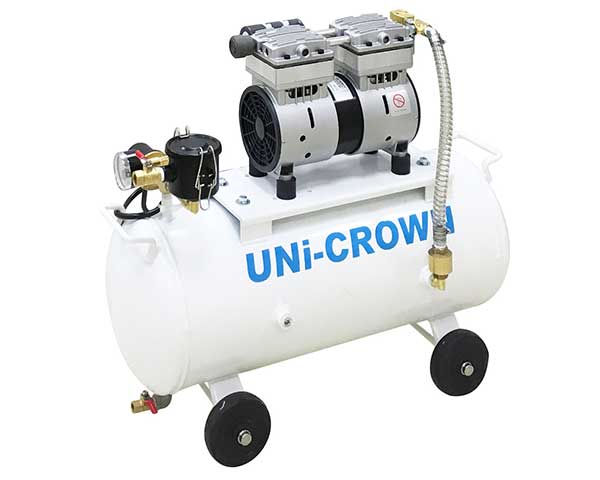

Oilless Vacuum Pump│Vacuum Tank System│UN-200VT
The installation of an industrial vacuum system is advantageous especially in terms of energy savings, because the pumps automatically switch on only when needed by the user.
Features:
Oilless operation, Deliver a steady flow rate, Low noise level,Fast take out air, With 30L tank, Continuous operation
Applications:
Handling, Transport, Medical application, Automatic machine assembly,Various vacuum application, As central vacuum system. Whether it’s for pick and place, Lifting and conveying, IC packaging industry, Electronics industry, Circuit board press, For Vacuum Workholding, Fixturing & Vacuum Forming, Vacuum centralized systems.
As the vacuum level drops in the Vacuum tank, the Vacuum Switch turns the Vacuum System on until the upper limit of the vacuum is reached. Once the upper vacuum limit is reached the Vacuum Pump shuts off. The Electric Vacuum Pump cycles on and off automatically as needed, therefore constant monitoring is not necessary.
Product Specifications
| 規格項目 SPEC | 單位 UNIT | 規格值 SPEC.Value |
|---|---|---|
| 電壓 Rated Voltage | V | AC 110 or 220 |
| 最大真空度 Vacuum | mmHg | 650 |
| 最大流量 Open Flow | LPM | 200(60Hz)/160(50Hz) |
| 消耗功率 Power Consumption | W | 500 |
| 外型尺寸 Dimension | mm | 670 x 300 x 570 |
| 儲氣桶 Tank Volume | L | 30 |
| 安裝口徑 I.D. of screw thread | PT | 3/8" |
| 重量 Weight | kg | 25.6 |
