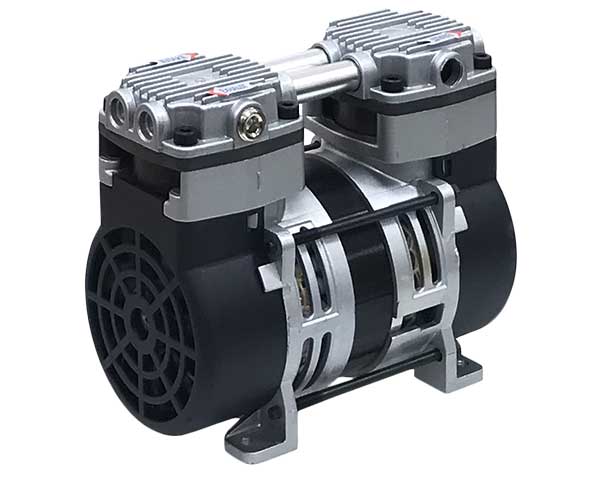

UNICROWN-Oilless Vacuum Pump UN-25D

UN-25D Oilless Vacuum Pump

Vacuum: 600mmHg
Pressure: 1.5kgf/cm2
Flow: 40LPM

Contact
Catalog

Oilless Vacuum Pump│Vacuum Pump│UN-25D

Feature:
Can be used as vacuum & Air compressor,Oilless operation, Compact design, Low noise level

Application:
Cupping machine, Game machine,Medical application, Vacuum suction pen

Product Specifications

規格項目 SPEC單位 UNIT規格值 SPEC.Value
電壓 Rated VoltageVAC 110 or 220
最大真空度 Max.VacuummmHg600
最大壓力 Pressurekgf/cm21.5
最大流量 Open FlowLPM40(60Hz) / 34(50Hz)
消耗功率 Power ConsumptionW130
外型尺寸 Dimension mm175 x 93 x 143
安裝尺寸 Installation Sizemm70 x 114 x M6
適用內徑軟管 Hose ID SuggestionPT1/4"PT
重量 Weightkg3.2
規格項目 SPEC單位 UNIT規格值 SPEC.Value
電壓 Rated VoltageVAC 110 or 220
最大真空度 Max.VacuummmHg600
最大壓力 Pressurekgf/cm21.5
最大流量 Open FlowLPM40(60Hz) / 34(50Hz)
消耗功率 Power ConsumptionW130
外型尺寸 Dimension mm175 x 93 x 143
安裝尺寸 Installation Sizemm70 x 114 x M6
適用內徑軟管 Hose ID SuggestionPT1/4"PT
重量 Weightkg3.2

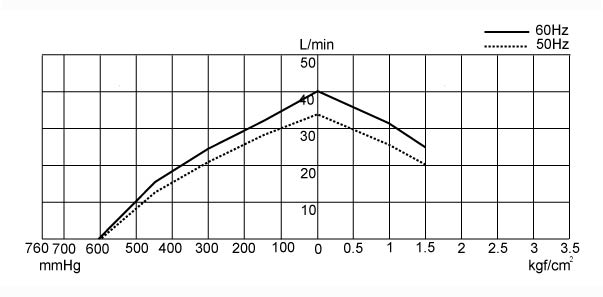

Product Performance


UN-25D-Performance

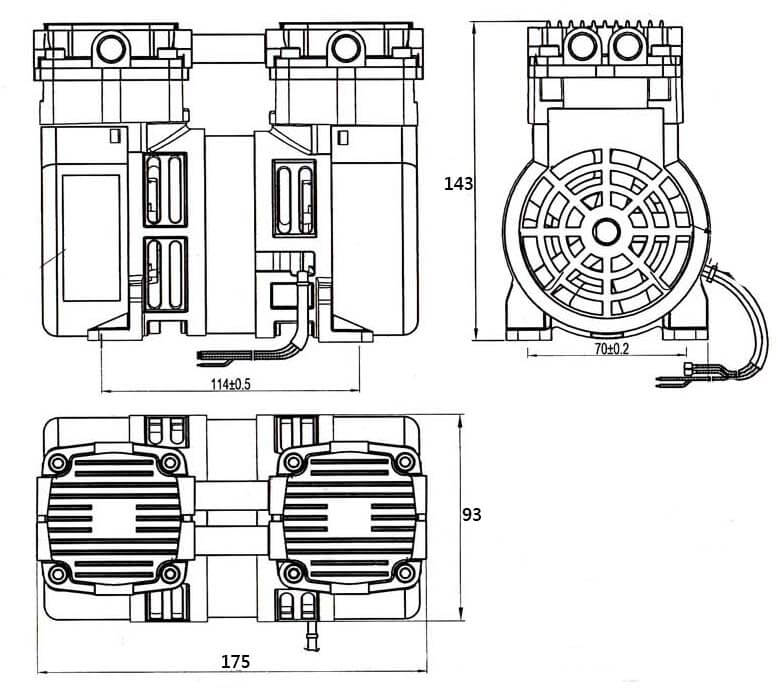

Product Dimensions


UN-25D-Dimensional-drawings

Recommended Accessories

  • UNICROWN Vacuum Filters VF-B
    Vacuum Filter

    VF-B

    Bore: 1/4″
    Flow: 200LPM

  • UNICROWN Vacuum Filters With Regulators VFR-B
    Vacuum Regulator

    VFR-B

    Bore: 1/4″
    flow: 200LPM
