UNICROWN DC Air Compressor DC-2P

DC-2P

Pressure: 0.45kgf/cm2
Open Flow: 1.8LPM

Contact
Catalog

Air compressor 12v│DC air compressor│DC-2P

Feature:
Low Leakage, Low Noice, Easy to Install,Stable Output

Application:
Arm-type electric blood pressure monitor,Air Massage Machine, Patient Monitor,Household electrical appliances

Product Specifications

規格項目 SPEC單位 UNIT規格值 SPEC.Value
電壓 Rated VoltageVDC 6 or 12
最大壓力 Pressurekgf/cm20.45
最大流量 Open FlowLPM1.8
消耗電流 Rated CurrentmA350 or 250
外型尺寸 Dimension mm65 x Φ27 / 68 x Φ27
適用內徑軟管 Hose ID suggestionmmΦ 4
重量 Weightg60
馬達壽命 Reference lifetimehours>125
規格項目 SPEC單位 UNIT規格值 SPEC.Value
電壓 Rated VoltageVDC 6 or 12
最大壓力 Pressurekgf/cm20.45
最大流量 Open FlowLPM1.8
消耗電流 Rated CurrentmA350 or 250
外型尺寸 Dimension mm65 x Φ27 / 68 x Φ27
適用內徑軟管 Hose ID suggestionmmΦ 4
重量 Weightg60
馬達壽命 Reference lifetimehours>125

Product Performance

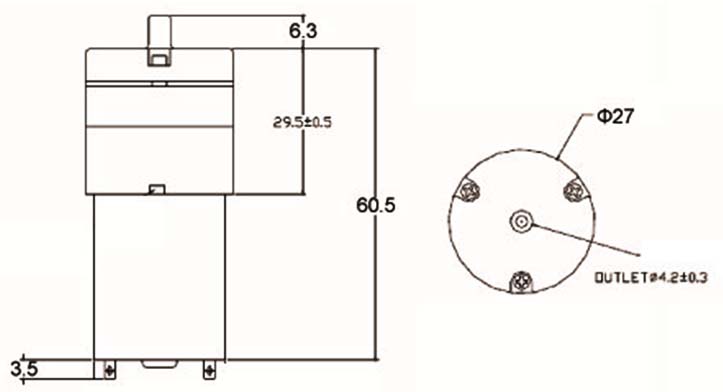

DC-2P-Dimensional-drawings
