UN-280VQ Oilless Vacuum Pump

AC 220V
Vacuum: 755mmHg
Flow: 270LPM

Our oilless vacuum pumps are the ideal solution for many industrial applications, such as conveying, transporting, fixing, lifting, handling, drying, cooling and many more. UN-280VQ

Our Oilless Vacuum Pump is encased in a solid shell that’s engineered to withstand the harshest conditions.

Feature:
Solid Shell Protection, Oilless operation, Compact design, High flow rate with low noise level, Back pressure auto release,Motor with thermo protection, Rugged construction, low maintenance

Application:
Instruments & Medical application, Automatic machine assembly, Semi-conductor equipments, Degassing, Extracting, Vacuum Fixing, Pick & Place, Evacuation

Product Specifications

規格項目 SPEC單位 UNIT規格值 SPEC.Value
電壓 Rated VoltageVAC 220
最大真空度 Max.VacuummmHg755
最大流量 Open FlowLPM270(60Hz)/240(50Hz)
消耗功率 Power ConsumptionW1700
外型尺寸 Dimension mm730 x 460 x 400
安裝尺寸 Installation Sizemm620 x 420
適用內徑軟管 Hose ID SuggestionPT1"
重量 Weightkg65
規格項目 SPEC單位 UNIT規格值 SPEC.Value
電壓 Rated VoltageVAC 220
最大真空度 Max.VacuummmHg755
最大流量 Open FlowLPM270(60Hz)/240(50Hz)
消耗功率 Power ConsumptionW1700
外型尺寸 Dimension mm730 x 460 x 400
安裝尺寸 Installation Sizemm620 x 420
適用內徑軟管 Hose ID SuggestionPT1"
重量 Weightkg65

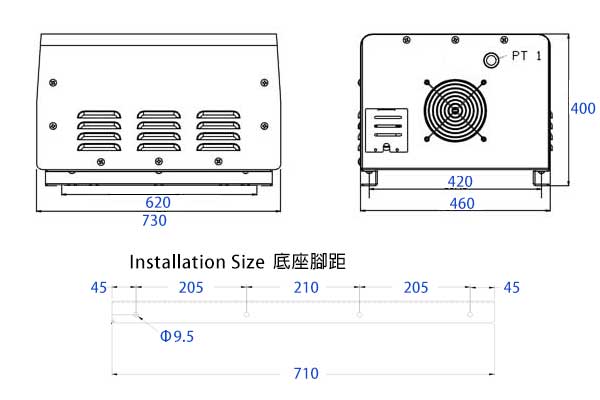

Product Dimensions


UN-280VQ Dimensional-drawings

Recommended Accessories

  • UNICROWN Vacuum Filters VF Series
    Vacuum Filter

    VF Series

    Filtration: 8~10μM
    Flow: 24~1260m3/h
