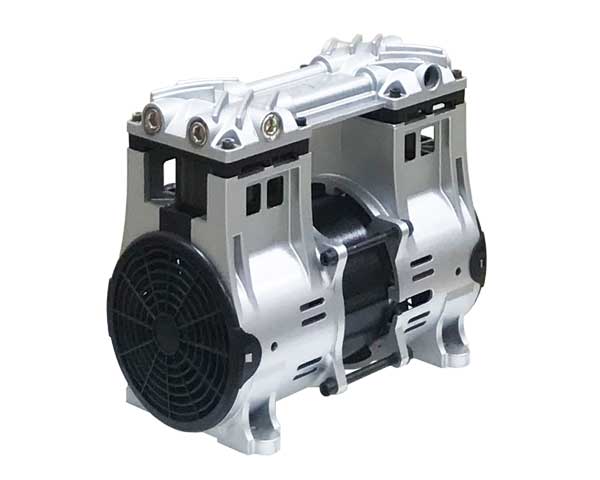

UN-350P Air Compressor for Truck Tires – Powerful, Oil-Free Performance for Heavy-Duty Applications
Feature:
100% Oil-Free Design
The UN-350P piston air compressor operates without oil, ensuring that the compressed air remains free of contaminants. This makes it ideal for industries requiring clean air, such as pharmaceuticals, food processing, and electronics manufacturing.
High Efficiency & Low Maintenance
With a robust piston design, the UN-350P delivers high air output with minimal energy consumption, reducing operational costs. The oil-free system requires less maintenance compared to traditional lubricated compressors, leading to lower long-term ownership costs.
Compact & Quiet Operation
Its compact size allows easy integration into various setups, while the low noise level ensures a quieter working environment, ideal for both industrial and laboratory settings.
Durable & Long-Lasting Performance
Built with high-quality materials, the UN-350P is designed for durability, ensuring consistent performance even in demanding environments.
Application:
Cutting Welding, Atomizing Machine,Medical application,Various machineries assembly, Truck tire inflator, Heavy Goods Vehicle tyre inflation, High-flow air inflation, High-pressure air inflation
Certification:
CE EMC Certification
EN 55014-1:2017/A11:2020
EN 55014-2:2015
EN IEC 6100-3-2:2019/A1:2021
EN 61000-3-3:2013/A1:2019
CE LVD Certification
EN 60335-1: 2012+A13:2017
EN 60335-2-34:2013
規格項目 SPEC | 單位 UNIT | 規格值 SPEC.Value |
---|---|---|
電壓 Rated Voltage | V | AC 110 or 220 |
最大壓力 Pressure | kgf/cm2 | 8 |

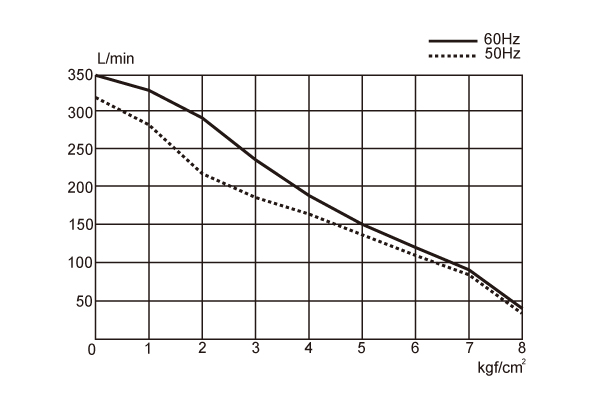

最大流量 Open Flow | LPM | 350(60Hz)/320(50Hz) |
消耗功率 Power Consumption | W | 1800 |

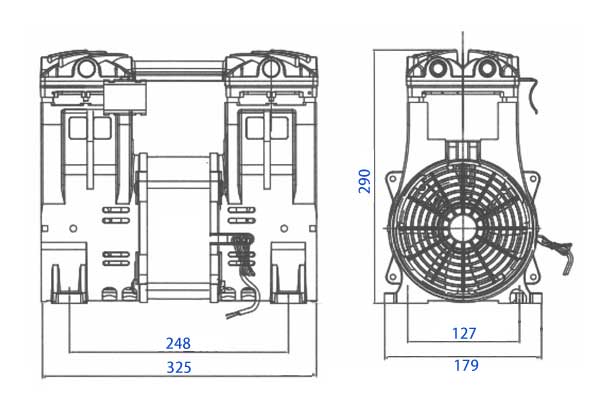

外型尺寸 Dimension | mm | 325 x 179 x 290 |
安裝尺寸 Installation Size | mm | 248 x 127 x M8 |
安裝口徑 Connections | PT | G 1/2 |
重量 Weight | kg | 22 |
規格項目 SPEC | 單位 UNIT | 規格值 SPEC.Value |
---|---|---|
電壓 Rated Voltage | V | AC 110 or 220 |
最大壓力 Pressure | kgf/cm2 | 8 |
最大流量 Open Flow | LPM | 350(60Hz)/320(50Hz) |
消耗功率 Power Consumption | W | 1800 |
外型尺寸 Dimension | mm | 325 x 179 x 290 |
安裝尺寸 Installation Size | mm | 248 x 127 x M8 |
連接口徑 Connections | G 1/2 | |
重量 Weight | kg | 22 |
