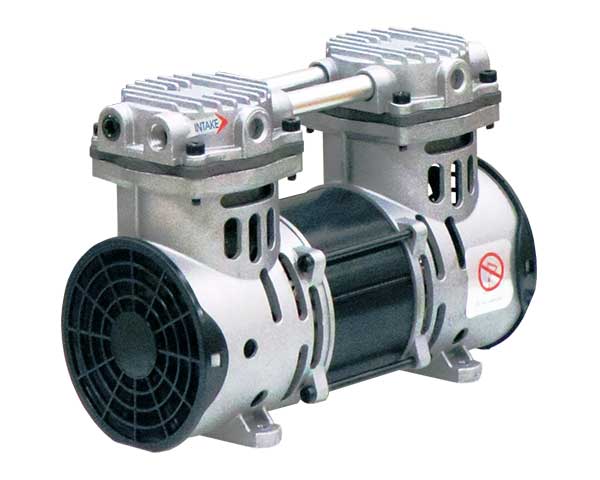

UN-60P-OXY Compressor for Oxygen

Compressors for Oxygen Concentrator
Pressure: 2.5kgf/cm2
Flow: 110LPM

Critical performance criteria for oxygen concentrator compressors included low noise/vibration, long life, oil-free operation, light weight, low energy use, and ability to deliver precise flow and pressure. UN-60P-OXY Compressor for Oxygen,Pressure 2.5kgf/cm2 Flow 110LPM

Feature:
100% Oil-Free(no contamination), High flow rate, Low pressure capability, Low maintenance, Long product life, Low noise, Safety valves(If pressure exceeds the amount allowed by the pressure relief valve, the pressure relief valve will automatically open and release air until the pressure is reduced.)

Application:
Oxygenerator, Medical application, Water treatment,Pond and Lake management, Sewage aeration,Water Purification Systems, Aeration systems,Water sampling, other deep water applications.

Certification:
CE EMC Certification
EN 55014-1:2006+A1:2009+A2:2011
EN 55014-2:2015
EN 61000-3-2:2014
EN 61000-3-3:2013

CE LVD Certification
EN 60335-1: 2012+A13:2017
EN 60335-2-80: 2003+A1:2004+A2:2009

Quiet, compact, and durable compressor for oil-free operation – ideal for medical applications



Product Specifications

規格項目 SPEC單位 UNIT規格值 SPEC.Value
電壓 Rated VoltageVAC 110 or 220
最大壓力 Pressurekgf/cm22.5
最大流量 Open FlowLPM110(60Hz) / 88(50Hz)
消耗功率 Power ConsumptionW400
外型尺寸 Dimension mm240 x 105 x 170
安裝尺寸 Installation Sizemm147 x 83 x M6
安裝口徑 I.D. of screw threadPT1/4
重量 Weightkg6.2
規格項目 SPEC單位 UNIT規格值 SPEC.Value
電壓 Rated VoltageVAC 110 or 220
最大壓力 Pressurekgf/cm22.5
最大流量 Open FlowLPM110(60Hz) / 88(50Hz)
消耗功率 Power ConsumptionW400
外型尺寸 Dimension mm240 x 105 x 170
安裝尺寸 Installation Sizemm147 x 83 x M6
安裝口徑 I.D. of screw threadPT1/4
重量 Weightkg6.2

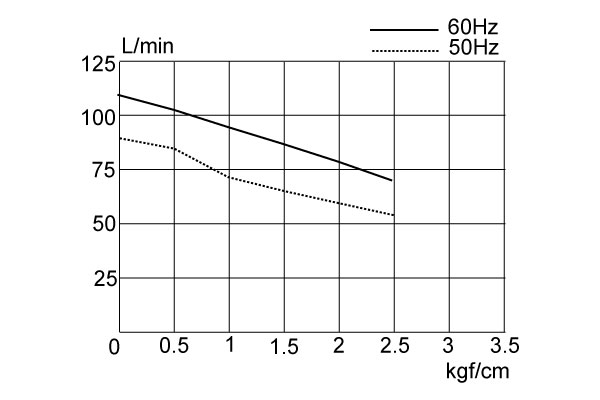

Product Performance


UN-60P-OXY-Performance

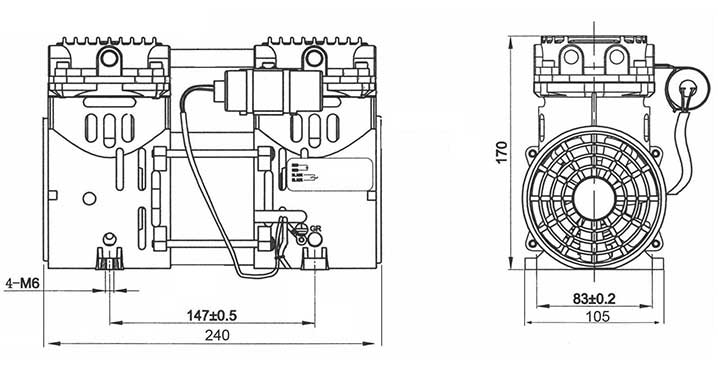

Product Dimensions
