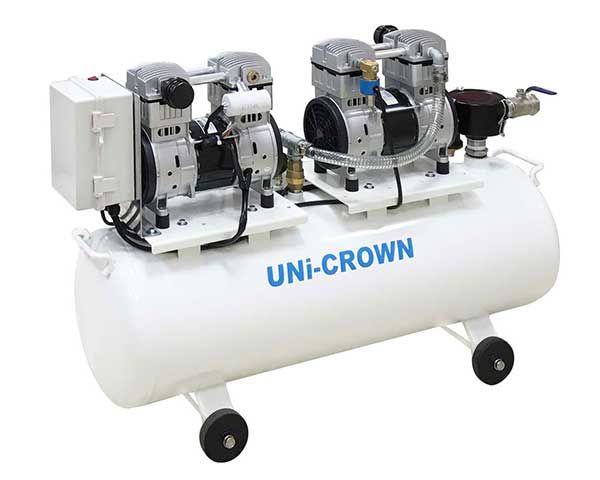

Oilless Vacuum Pump│Vacuum Tank System│UN-602VT
The installation of an industrial vacuum system is advantageous especially in terms of energy savings, because the pumps automatically switch on only when needed by the user.
Features:
vacuum degree adjustable, Deliver a steady flow rate, High flow rate,Oilless operation, With 100L tank, Continuous operation
Applications:
CNC milling machine, central vacuum system, Handling, Transport. Whether it’s for pick and place, Lifting and conveying, IC packaging industry, Electronics industry, Circuit board press, For Vacuum Workholding, Fixturing & Vacuum Forming, Vacuum centralized systems.
As the vacuum level drops in the Vacuum tank, the Vacuum Switch turns the Vacuum System on until the upper limit of the vacuum is reached. Once the upper vacuum limit is reached the Vacuum Pump shuts off. The Electric Vacuum Pump cycles on and off automatically as needed, therefore constant monitoring is not necessary.
Product Specifications
| 規格項目 SPEC | 單位 UNIT | 規格值 SPEC.Value |
|---|---|---|
| 電壓 Rated Voltage | V | AC 220 or AC 380-3 |
| 最大真空度 Vacuum | mmHg | 650 |
| 最大流量 Open Flow | LPM | 560(60Hz)/500(50Hz) |
| 消耗功率 Power Consumption | W | 1900 |
| 外型尺寸 Dimension | mm | 1200 x 350 x 780 |
| 儲氣桶 Tank Volume | L | 100 |
| 安裝口徑 I.D. of screw thread | PT | 1" |
| 重量 Weight | kg | 86.6 |
