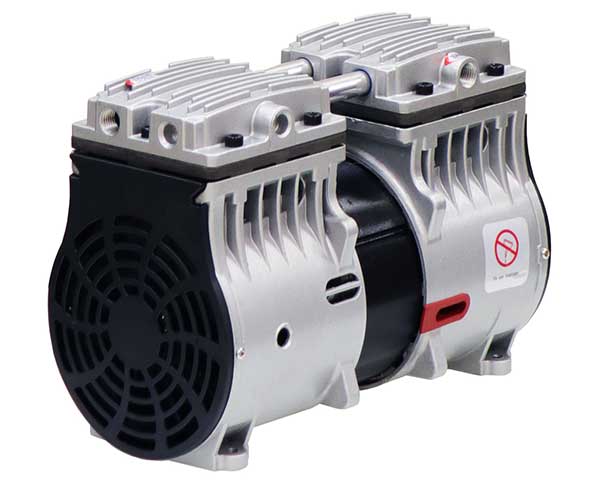

UN-90P Oilless Air Compressor

Voltage: AC 110V or 220V
Pressure: 7kgf/cm2
Flow: 90LPM

Oilless air compressor do not experience a cost acquired from disposal of oil-laden condensate. This means you save both time and money by using an oil-free compressor. UN-90P Max Pressure:7kgf/cm2 Max Flow:90LPM

Feature:
Lower cost, Less maintenance, Environmentally friendly (The compressor’s absence of oil is eco-friendly because the machine doesn’t release pollutants into the atmosphere. These substances can harm both the environment and your workers.), Diminished risk of contamination (Oil-free compressors are often required in fields like food and medicine, where oil-free, clean air is essential.)

Traditional oil air compressor maintenance is somewhat involved. These machines require routine oil changes, which means you also have to dispose of this oil. This action costs more money and time. You also have to remove oil aerosols, for which you’ll need filtration and oil and air separator elements. With oil-free air compressors, you don’t have to do any of these tedious chores.

Application:
Food and beverage production requires sanitary compressed air, Laboratory professionals use pneumatic tools to portion ingredients exactly per their formulas, sprays crop seeds, operates dairy machines, ventilates greenhouses.

Certification:
CE EMC Certification
EN 55014-1:2006+A1:2009+A2:2011
EN 55014-2:2015
EN 61000-3-2:2014
EN 61000-3-3:2013

CE LVD Certification
EN 60335-1: 2012+A13:2017
EN 60335-2-80: 2003+A1:2004+A2:2009

RoHS Certification

Product Specifications

規格項目 SPEC單位 UNIT規格值 SPEC.Value
電壓 Rated VoltageVAC 110 or 220
最大壓力 Pressurekgf/cm27
最大流量 Open FlowLPM90(60Hz) /80(50Hz)
消耗功率 Power ConsumptionW520
外型尺寸 Dimension mm250 x 130 x 180
安裝尺寸 Installation Sizemm203.5 x 89 x M6
安裝口徑 I.D. of screw threadPT1/4"
重量 Weightkg7.4
規格項目 SPEC單位 UNIT規格值 SPEC.Value
電壓 Rated VoltageVAC 110 or 220
最大壓力 Pressurekgf/cm27
最大流量 Open FlowLPM90(60Hz) /80(50Hz)
消耗功率 Power ConsumptionW520
外型尺寸 Dimension mm250 x 130 x 180
安裝尺寸 Installation Sizemm203.5 x 89 x M6
安裝口徑 I.D. of screw threadPT1/4"
重量 Weightkg7.4

What I Need to Know Before Buying a Oilless air compressor: Questions to Ask Yourself

1. What is the Application?
2. What Air Tools Will You Be Using?
3. How Often Will You Use the Air Compressor?
4. Where Will You Store and Use the Compressor?
5. What Type of Power is Available?
6. How Much Pressure Do You Need?
7. How Much Airflow Do You Need?
8. What Compressor Features Might You Want to Consider? (Air dryer, Filters)

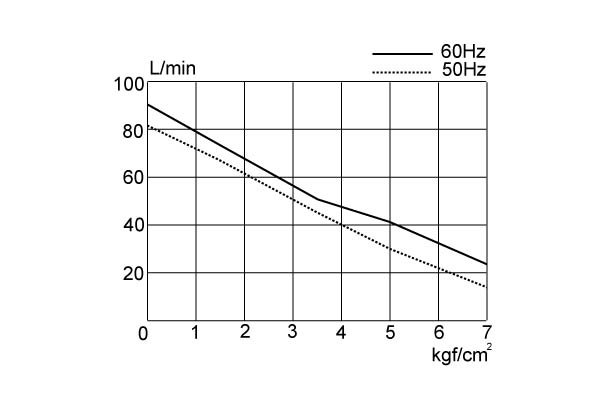

Product Performance


UN-90P-Performance

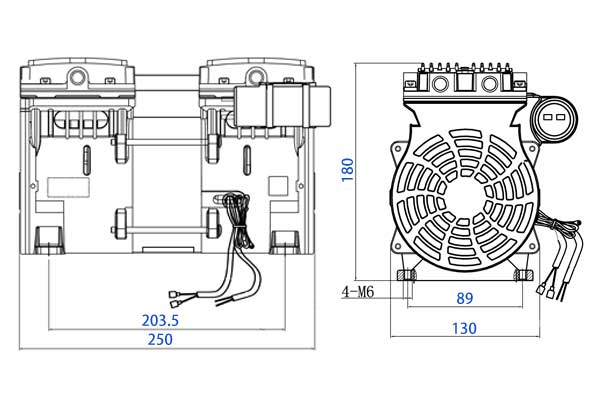

Product Dimensions


UN-90P-Dimensional-drawings

Recommended Accessories
