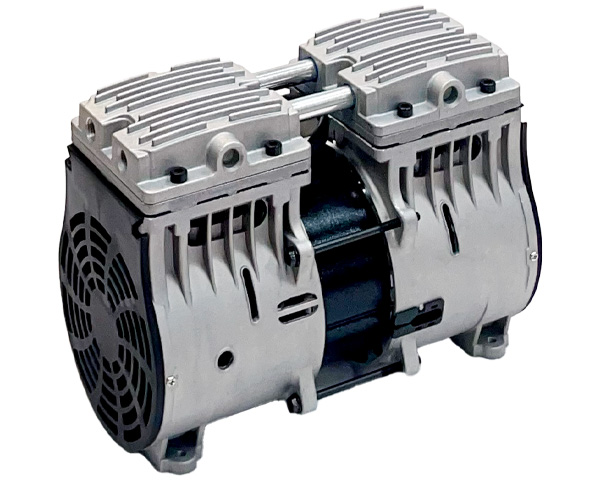

UN-90V Oilless Vacuum Pump

AC 110V or 220V
Max Vacuum: 680mmHg
Max Flow: 90LPM

UN-90V oilless vacuum pump is ideal for manufacturing and industrial markets applications, but should be considered for specific medical, laboratory, and Food & Beverage applications as well. Max Vacuum:680mmHg Max Flow:90LPM

Feature:
Oil-less operation, Non-lubricated piston and cylinder (Clean air stream, less maintenance), Easily replaced piston seal, Balanced for smooth, low vibration operation, Light weight die-cast aluminum components, Permanently lubricated bearings, Stainless steel valves, Twin fans provide cooling air through and around motor and cylinders, All wetted aluminum parts treated for corrosion protection from moisture, Thermally protected permanent split capacitor AC motors, One Year Warranty Provided

Application:
Semiconductor automation equipment, Vacuum packaing, spin coater, Labeling machine, Robotic arms.

Certification:
CE EMC Certification
EN 55014-1:2006+A1:2009+A2:2011
EN 55014-2:2015
EN 61000-3-2:2014
EN 61000-3-3:2013

CE LVD Certification
EN 60335-1: 2012+A13:2017
EN 60335-2-80: 2003+A1:2004+A2:2009

RoHS Certification

Product Specifications

規格項目 SPEC單位 UNIT規格值 SPEC.Value
電壓 Rated VoltageV AC 110 or 220
最大真空度 Max.VacuummmHg680
最大流量 Open FlowLPM90(60Hz) / 80(50Hz)
消耗功率 Power ConsumptionW250
外型尺寸 Dimension mm250 x 128 x 184
安裝尺寸 Installation Sizemm203.5 x 89 x M6
安裝口徑 I.D. of screw threadPT1/4"
重量 Weightkg7.8
規格項目 SPEC單位 UNIT規格值 SPEC.Value
電壓 Rated VoltageV AC 110 or 220
最大真空度 Max.VacuummmHg680
最大流量 Open FlowLPM90(60Hz) / 80(50Hz)
消耗功率 Power ConsumptionW250
外型尺寸 Dimension mm250 x 128 x 184
安裝尺寸 Installation Sizemm203.5 x 89 x M6
安裝口徑 I.D. of screw threadPT1/4"
重量 Weightkg7.8

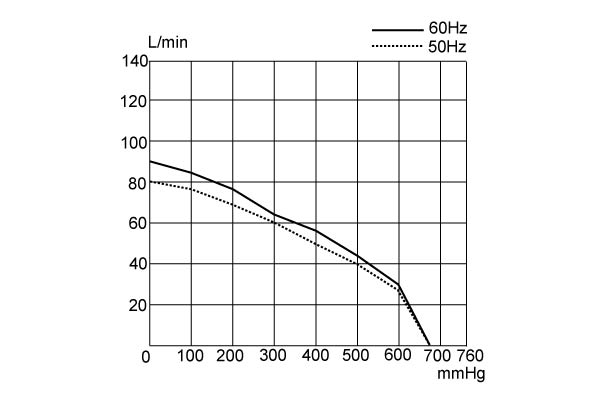

Product Performance


oilless vacuum pump UN-90V-Performance

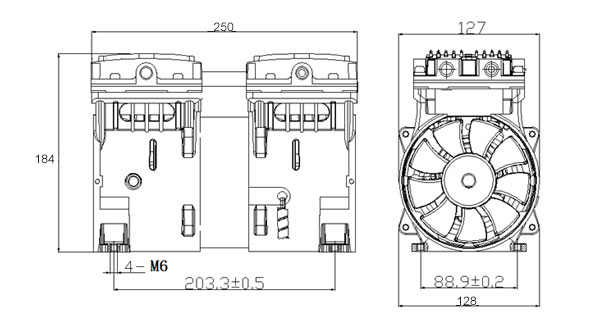

Product Dimensions


oilless vacuum pump UN-90V-Dimensional-drawings

Recommended Accessories

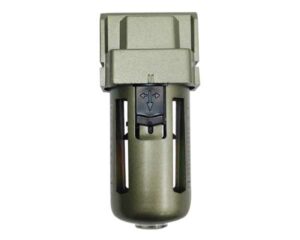

  • UNICROWN Vacuum Filters VF-B
    Vacuum Filter

    VF-B

    Bore: 1/4″
    Flow: 200LPM
