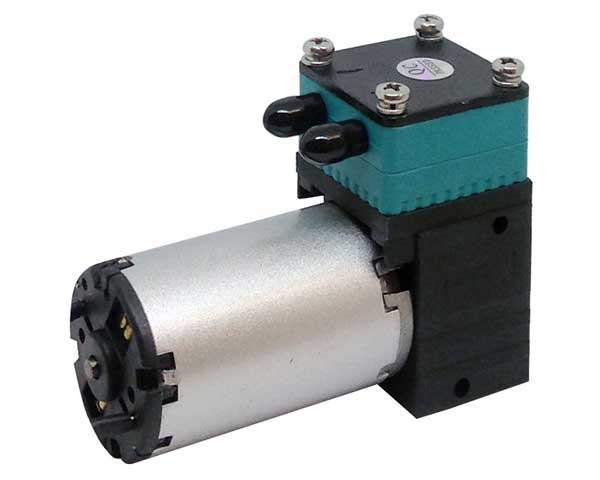

DC-04WL Mini water pump

Vacuum: 420mmHg
Max Head:10M
Gas Flow: 2.8LPM
Water Flow: 0.3LPM
Lifetime:3000hr

Mini water pump│DC water pump│DC-04WL

Feature:
Lifetime:5000hr, Mini Diaphragm Liquid Pumps, Uncontaminated flow,Small and powerful, Dry running, Durable

Application:
Industrial vacuum applications, Printing ,Laboratory,Environmental/water treatment, Cleaning industry,Medical Diagnostic Equipment

Product Specifications

規格項目 SPEC單位 UNIT規格值 SPEC.Value
電壓 Rated VoltageVDC 6 or 12 or 24
最大真空度 Maximum vacuummmHg420
氣體流量 Gas FlowLPM2.8
水流量 Water FlowLPM0.3
揚程 Max HeadM≧10
安培值 Rated CurrentA0.4 or 0.24 or 0.15
外型尺寸 Dimension mm76 x 31 x 58
連接口徑 ConnectionsmmΦ 4
重量 Weightg220
馬達壽命 Reference lifetimehours3000
規格項目 SPEC單位 UNIT規格值 SPEC.Value
電壓 Rated VoltageVDC 6 or 12 or 24
最大真空度 Maximum vacuummmHg420
氣體流量 Gas FlowLPM2.8
水流量 Water FlowLPM0.3
揚程 Max HeadM≧10
安培值 Rated CurrentA0.4 or 0.24 or 0.15
外型尺寸 Dimension mm76 x 31 x 58
連接口徑 ConnectionsmmΦ 4
重量 Weightg220
馬達壽命 Reference lifetimehours3000

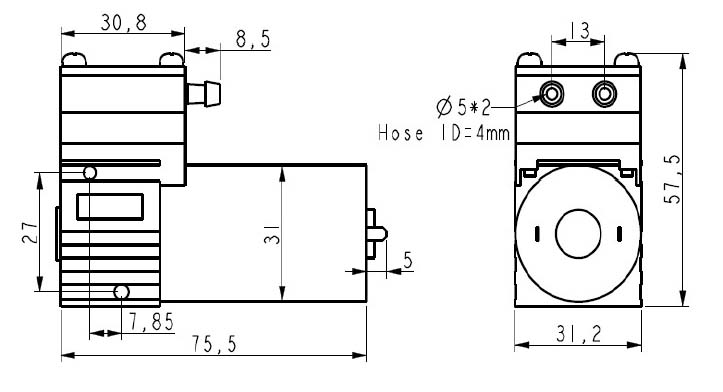

Product Dimensions


DC-04WL-Performance
