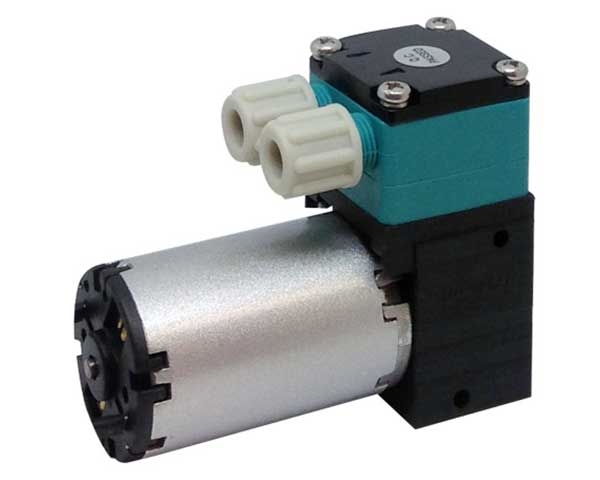

Mini water pump│DC water pump│DC-1.0W
Feature:
Lifetime:5000hr, Mini Diaphragm Liquid Pumps, Uncontaminated flow,Small and powerful, Dry running, Durable
Application:
Industrial vacuum applications, Printing ,Laboratory,Environmental/water treatment, Cleaning industry,Medical Diagnostic Equipment
Product Specifications
| 規格項目 SPEC | 單位 UNIT | 規格值 SPEC.Value |
|---|---|---|
| 電壓 Rated Voltage | V | DC 6 or 12 or 24 |
| 最大真空度 Maximum vacuum | mmHg | 350 |
| 氣體流量 Gas Flow | LPM | 2 |
| 水流量 Water Flow | LPM | 0.9 |
| 揚程 Max Head | M | ≧10 |
| 安培值 Rated Current | A | 0.4 or 0.24 or 0.15 |
| 外型尺寸 Dimension | mm | 76 x 31 x 60 |
| 連接口徑 Connections | mm | Φ 4 |
| 重量 Weight | g | 220 |
| 馬達壽命 Reference lifetime | hours | 3000 |
| 噪音值 Level of noise | dB | <50 |
| 規格項目 SPEC | 單位 UNIT | 規格值 SPEC.Value |
|---|---|---|
| 電壓 Rated Voltage | V | DC 6 or 12 or 24 |
| 最大真空度 Maximum vacuum | mmHg | 350 |
| 氣體流量 Gas Flow | LPM | 2 |
| 水流量 Water Flow | LPM | 0.9 |
| 揚程 Max Head | M | ≧10 |
| 安培值 Rated Current | A | 0.4 or 0.24 or 0.15 |
| 外型尺寸 Dimension | mm | 76 x 31 x 60 |
| 連接口徑 Connections | mm | Φ 4 |
| 重量 Weight | g | 220 |
| 馬達壽命 Reference lifetime | hours | 3000 |
| 噪音值 Level of noise | dB | <50 |

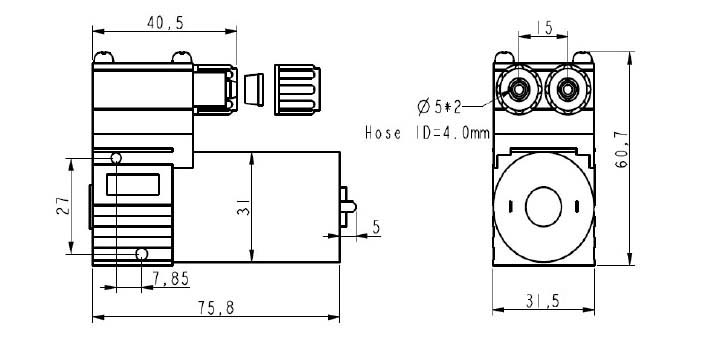

Product Dimensions
