Oil Vacuum Pump│DC Mini Air Pump│DC-V1
Feature:
Micro Vacuum Pump, Low Power Consumption,Low Leakage
Application:
Medical application, Vacuum suction product,Household appliances, Beauty care,Electronic blood pressure machine,Precision pump for analyzer, Health care
Product Specifications
| 規格項目 SPEC | 單位 UNIT | 規格值 SPEC.Value |
|---|---|---|
| 電壓 Rated Voltage | V | DC 6 or 12 |
| 最大真空度 Maximum vacuum | mmHg | 200 |
| 最大流量 Open Flow | L/min | ≧1 |
| 消耗功率 Power Consumption | W | 1.8 |
| 外型尺寸 Dimension | mm | 48 x 27 x 12 |
| 適用內徑軟管 Hose ID Suggestion | mm | Φ 3 |
| 重量 Weight | kg | 15 |
| 馬達壽命 Reference lifetime | hours | >100 |
| 規格項目 SPEC | 單位 UNIT | 規格值 SPEC.Value |
|---|---|---|
| 電壓 Rated Voltage | V | DC 6 or 12 |
| 最大真空度 Maximum vacuum | mmHg | 200 |
| 最大流量 Open Flow | L/min | ≧1 |
| 消耗功率 Power Consumption | W | 1.8 |
| 外型尺寸 Dimension | mm | 48 x 27 x 12 |
| 適用內徑軟管 Hose ID Suggestion | mm | Φ 3 |
| 重量 Weight | kg | 15 |
| 馬達壽命 Reference lifetime | hours | >100 |

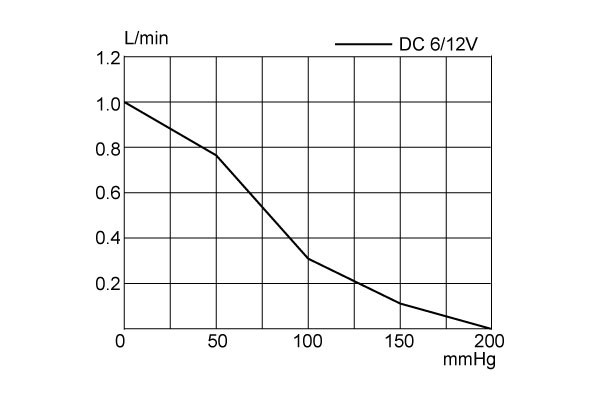

Product Performance

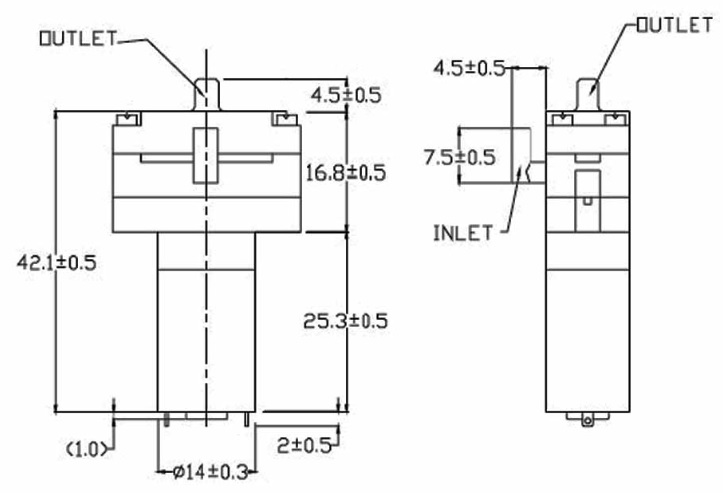

Product Dimensions
