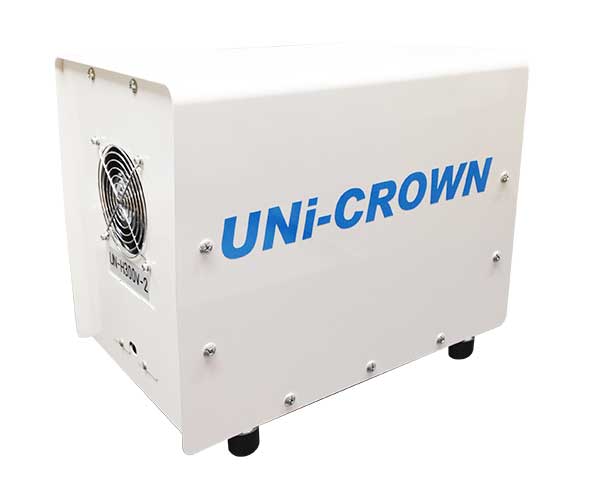

JB Series has been designed to reduce the problem of noise in laboratories. JB-300V enclosure are the perfect solution to increase comfort in laboratory.
Feature：
Oilless operation, Compact design, High flow rate with low noise level, Back pressure auto release,Motor with thermo protection, Rugged construction, low maintenance
Application：
Instruments & Medical application, Automatic machine assembly, Semi-conductor equipments, Degassing, Extracting, Vacuum Fixing, Pick & Place, Evacuation
Certification：
CE EMC Certification
EN 55014-1:2006+A1:2009+A2:2011
EN 55014-2:2015
EN 61000-3-2:2014
EN 61000-3-3:2013
CE LVD Certification
EN 60335-1: 2012+A13:2017
EN 60335-2-80: 2003+A1:2004+A2:2009
Product Specifications
| 規格項目 SPEC | 單位 UNIT | 規格值 SPEC.Value |
|---|---|---|
| 電壓 Rated Voltage | V | AC 220 |
| 最大真空度 Max.Vacuum | mmHg | 680 |
| 最大流量 Open Flow | LPM | 280(60Hz) /250(50Hz) |
| 消耗功率 Power Consumption | W | 950 |
| 外型尺寸 Dimension | mm | 460 x 280 x 365 |
| 適用內徑軟管 Hose ID Suggestion | PT | 1/2" |
| 重量 Weight | kg | 30 |
| 規格項目 SPEC | 單位 UNIT | 規格值 SPEC.Value |
|---|---|---|
| 電壓 Rated Voltage | V | AC 220 |
| 最大真空度 Max.Vacuum | mmHg | 680 |
| 最大流量 Open Flow | LPM | 280(60Hz) /250(50Hz) |
| 消耗功率 Power Consumption | W | 950 |
| 外型尺寸 Dimension | mm | 460 x 280 x 365 |
| 適用內徑軟管 Hose ID Suggestion | PT | 1/2" |
| 重量 Weight | kg | 30 |

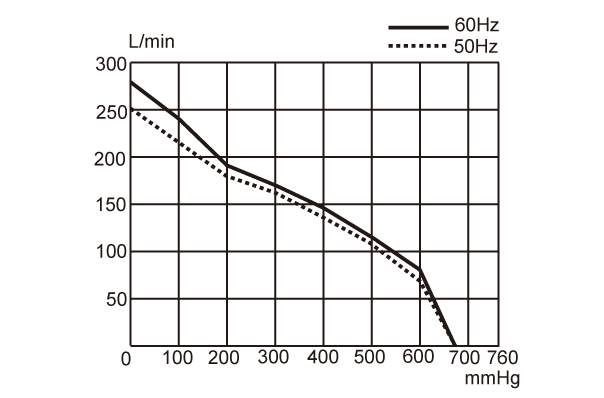

Product Performance
Product Dimensions
