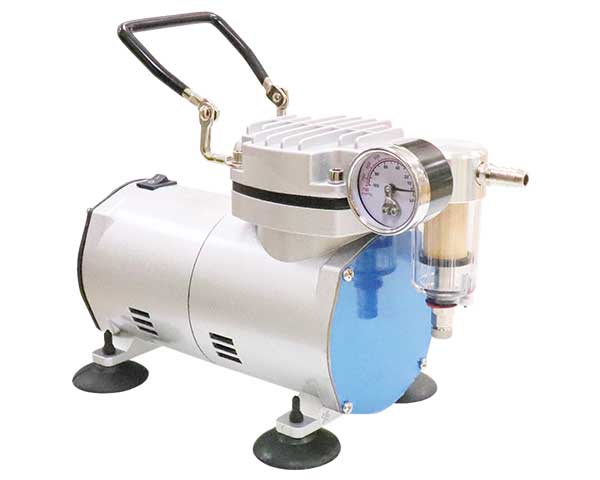

This rang of vacuum pumps were developed especially for laboratory operations. It satisfies the highest expectations in terms of precision, reliability and ease of use. Lab vacuum pump Laboratory vacuum pump LAB-300
Feature：
Oilless design, no pollution generated,Low vibration and low noise emission,Compact and easy carry design
Application：
Laboratory, Vacuum Filtration, environment protection,Filtration For Microbiology Test,industrial equipment,Environment Protection, Air Sampling, medicament, Backup surgical vacuum pump in a medical/surgical office.
Certification：
CE EMC Certification
EN 55014-1:2006+A1:2009+A2:2011
EN 55014-2:2015
EN 61000-3-2:2014
EN 61000-3-3:2013
CE LVD Certification
EN 60335-1: 2012+A11:2014
Product Specifications
| 規格項目 SPEC | 單位 UNIT | 規格值 SPEC.Value |
|---|---|---|
| 電壓 Rated Voltage | V | AC 110 or 220 |
| 最大真空度 Maximum vacuum | mmHg | 620 |
| 最大流量 Open Flow | L/min | 24(60Hz) / 19(50Hz) |
| 馬力 HP | HP | 1/8 |
| 消耗功率 Power Consumption | W | 95 |
| 外型尺寸 Dimension | mm | 267 x 113 x 150 |
| 重量 Weight | kg | 3.6 |
| 噪音值 Noise Level | dB | 45 |
| 規格項目 SPEC | 單位 UNIT | 規格值 SPEC.Value |
|---|---|---|
| 電壓 Rated Voltage | V | AC 110 or 220 |
| 最大真空度 Maximum vacuum | mmHg | 620 |
| 最大流量 Open Flow | L/min | 24(60Hz) / 19(50Hz) |
| 馬力 HP | HP | 1/8 |
| 消耗功率 Power Consumption | W | 95 |
| 外型尺寸 Dimension | mm | 267 x 113 x 150 |
| 重量 Weight | kg | 3.6 |
| 噪音值 Noise Level | dB | 45 |

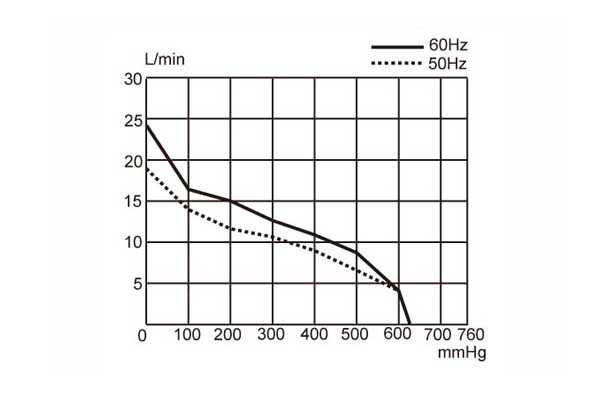

Product Performance

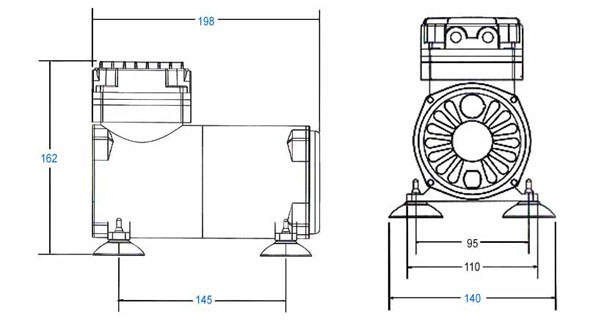

Product Dimensions
