Industrial blower can generate turbo differential pressures up to 140 mbar and airflows up to 121 m³/h.
side channel blower and exhausters may be used in all areas where pulsation-free air for vacuum and pressure applications is required.
Feature:
Low noise level, High air volume,Low vibration & Contamination free
Application:
Granulate dryers, Dust collecting plant, Aerator tank, Air Knives, Sewage treatment, Aquaculture, Adsorption, Chip Removal/Parts Blow Off, Liquid Agitation, Punch collector, Sewing machine, Transfer, Paper scrap, Waste gasses, Med suction, Paper dryer, Paper feeding machine, Paper holder, Vacuum transfer, Powder transfer, Collectors, Sediment, Textile, Electro facing, Dryer, Eliminator, Evaporator, Sock Knitting, Pool & spa, Hopper Loader.
A variety of spares and accessories are available to compliment our range of side channel blowers. Optional accessories include: Filters, Additional Silencers, Pressure gauges, Hoses, Manifolds, Safety Valves.
Product Specifications
| 規格項目 SPEC | 單位 UNIT | 規格值 SPEC.Value | 規格值 SPEC.Value |
|---|---|---|---|
| 頻率 Frequency | Hz | 50 | 60 |
| 馬力 HP | HP | 1/2 | 1/2 |
| 消耗功率 Power Consumption | kw | 0.37 | 0.45 |
| 電壓 Rated Voltage | V | 115 / 230 | 115 / 230 |
| 定額電流 Rated Current | A | 5.4 / 2.7 | 6.0 / 3.0 |
| 最大風量 Maximum Flow | m3/h | 101 | 121 |
| 最大真空度 Maximum Vacuum | mbar | -110 | -130 |
| 最大壓力 Maximum Pressure | mbar | 110 | 140 |
| 口徑 Installation Diameter | inch | G1 1/4" | G1 1/4" |
| 重量 Weight | kg | 11 | 11 |
| 噪音值 Noise | dB | 54 | 57 |
| 規格項目 SPEC | 單位 UNIT | 規格值 SPEC.Value | 規格值 SPEC.Value |
|---|---|---|---|
| 頻率 Frequency | Hz | 50 | 60 |
| 馬力 HP | HP | 1/2 | 1/2 |
| 消耗功率 Power Consumption | kw | 0.37 | 0.45 |
| 電壓 Rated Voltage | V | 115 / 230 | 115 / 230 |
| 定額電流 Rated Current | A | 5.4 / 2.7 | 6.0 / 3.0 |
| 最大風量 Maximum Flow | m3/h | 101 | 121 |
| 最大真空度 Maximum Vacuum | mbar | -110 | -130 |
| 最大壓力 Maximum Pressure | mbar | 110 | 140 |
| 口徑 Installation Diameter | inch | G1 1/4" | G1 1/4" |
| 重量 Weight | kg | 11 | 11 |
| 噪音值 Noise | dB | 54 | 57 |

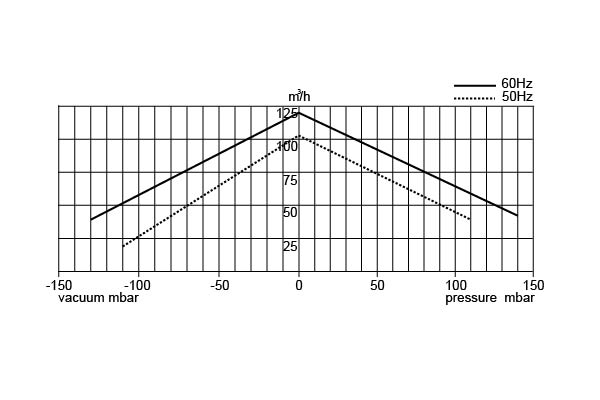

Product Performance

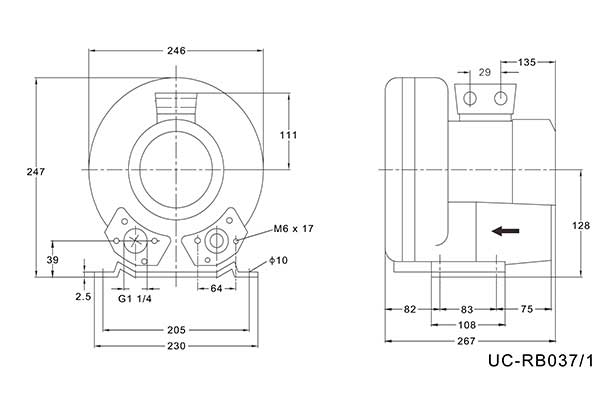

Product Dimensions
