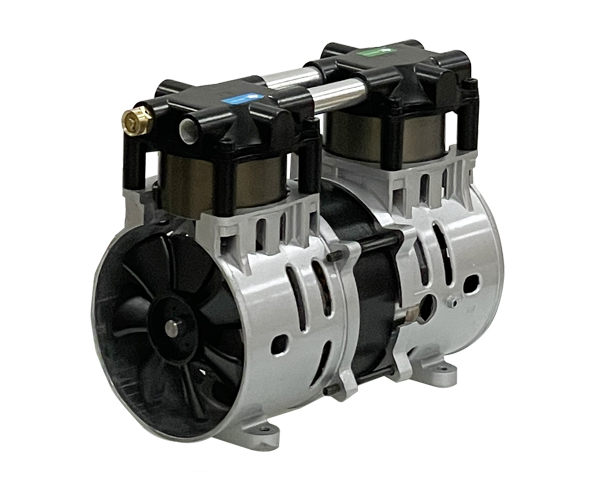

UN-120P-OXY Oilless Air Compressor

Compressors for Oxygen Concentrator
Compressors for Sewage aeration
Voltage: AC 110 or 220V
Max Pressure: 2.5kgf/cm2
Max Flow: 120LPM

Critical performance criteria for oxygen concentrator compressors included low noise/vibration, long life, oil-free operation, light weight, low energy use, and ability to deliver precise flow and pressure. UN-120P-OXY Compressors for Oxygen Concentrator,Pressure 2.5kgf/cm2 Flow 120LPM

Feature:
100% Oil-Free(no contamination), High flow rate, Low pressure capability, Low maintenance, Long product life, Low noise, Safety valves(If pressure exceeds the amount allowed by the pressure relief valve, the pressure relief valve will automatically open and release air until the pressure is reduced.)

Application:
Air compressors for 5L oxygen concentrator, Compressor for oxygen concentrator, Oxygenerator, Medical application, Water treatment, Pond and Lake management, Sewage aeration, Water Purification Systems, Aeration systems, Water sampling, water treatment systems, golf course ponds, fish farms, harsh industrial environmentsother deep water applications.

Certification:
CE EMC Certification
EN 61000-6-3:2007+A1:2011;
EN IEC 61000-6-1:2019;
EN IEC 61000-3-2:2019;
EN 61000-3-3:2013+A1:2019

CE LVD Certification
EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A2:2019+A14:2019+A15:2021

Quiet, compact, and durable compressor for oil-free operation – ideal for medical applications

Product Specifications

規格項目 SPEC單位 UNIT規格值 SPEC.Value
電壓 Rated VoltageVAC 110 or 220
最大壓力 Pressurekgf/cm22.5
最大流量 Open FlowLPM120(60Hz) / 100(50Hz)
消耗功率 Power ConsumptionW500
外型尺寸 Dimension mm235 x 118 x 180
安裝尺寸 Installation Sizemm146 x 83 x M6
安裝口徑 I.D. of screw threadG1/4
噪音值 Noise LeveldB62
重量 Weightkg5.8
規格項目 SPEC單位 UNIT規格值 SPEC.Value
電壓 Rated VoltageVAC 110 or 220
最大壓力 Pressurekgf/cm22.5
最大流量 Open FlowLPM120(60Hz) / 100(50Hz)
消耗功率 Power ConsumptionW500
外型尺寸 Dimension mm235 x 118 x 180
安裝尺寸 Installation Sizemm146 x 83 x M6
安裝口徑 I.D. of screw threadG1/4
噪音值 Noise LeveldB62
重量 Weightkg5.8

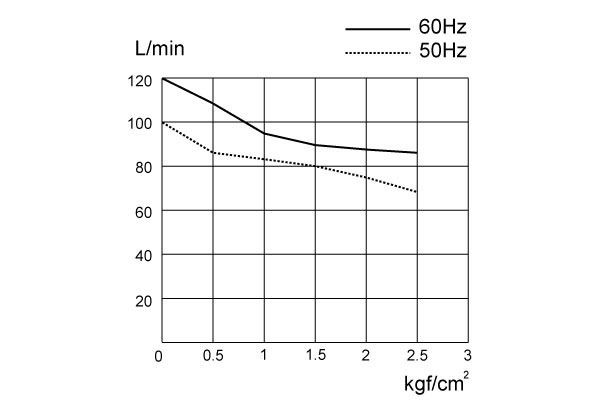

Product Performance


UN-120P-OXY-Performance

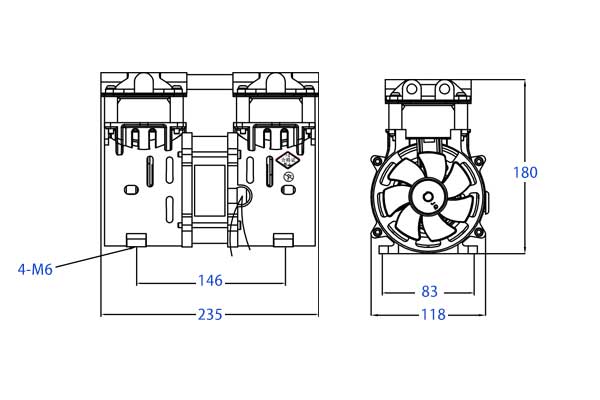

Product Dimensions


UN-120P-OXY-Dimensional-drawings
