UN-5.5SPC CEMS Sampling Pump | Corrosion Resistant AC Diaphragm Pump for CEMS Applications
Feature：
◆ Designed for CEMS and VOC monitoring systems
◆ Corrosion-resistant PTFE diaphragm and FFKM components
◆ AC motor ensures stable continuous operation
◆ Suitable for long-term environmental monitoring
◆ Reliable performance in polluted gas streams
Materials：
Pump Head: PPS
Diaphragm: PTFE (reinforced)
Valves: FFKM
Seals: FFKM
Application：
◆ CEMS (Continuous Emission Monitoring Systems)
◆ VOC monitoring systems
◆ Stack gas monitoring
◆ Environmental protection equipment
Suitable Gas Types
✔ Ambient air
✔ CO₂, CO, NOx (low to moderate concentration)
✔ VOC gases (low corrosivity)
✔ Nitrogen, Oxygen
✖ Not recommended
✔ VOC gases
✔ Flue gas (low temp)
✔ Acidic gases (SO₂, NOx)
✔ Industrial exhaust gases
✖ Not recommended
High temperature gases
Before selecting the pump, please identify the gas composition and confirm whether the gas contains condensable vapors, particulates, solvents, dust, corrosive substances, or acidic/alkaline components.
Product Specifications
| 規格項目 SPEC | 單位 UNIT | 規格值 SPEC.Value |
|---|---|---|
| 電壓 Rated Voltage | V | AC 230V / 50Hz |
| 最大真空 Max.Vacuum | mmHg | 540 |
| 最大壓力 Max. Pressure | kgf/cm2 | 2.1 |
| 最大流量 Open Flow | LPM | 5.5 |
| 消耗功率 Power Consumption | W | 41 |
| 外型尺寸 Dimension | mm | 116.2 x 66 x 94 |
| 安裝尺寸 Installation Size | mm | 47 x 48 (M4) |
| 安裝口徑 I.D. of screw thread | G 1/8" | |
| 重量 Weight | kg | 2.6 |
| 允許介質溫度 Permissible Medium Temperature | °C | 5~40 |
| 電機絕緣等級 Motor insulation calss | H | |
| 材質說明 Material | Pump head PPS、Diaphragm PTFE Coated、Valves FFKM、Gasket FFKM | |
| 馬達壽命 Reference Lifetime | hours | Vacuum: 10,000 Pressure: 8,000 |
| 規格項目 SPEC | 單位 UNIT | 規格值 SPEC.Value |
|---|---|---|
| 電壓 Rated Voltage | V | AC 230V / 50Hz |
| 最大真空 Max.Vacuum | mmHg | 540 |
| 最大壓力 Max. Pressure | kgf/cm2 | 2.1 |
| 最大流量 Open Flow | LPM | 5.5 |
| 消耗功率 Power Consumption | W | 41 |
| 外型尺寸 Dimension | mm | 116.2 x 66 x 94 |
| 安裝尺寸 Installation Size | mm | 47 x 48 (M4) |
| 安裝口徑 I.D. of screw thread | G 1/8" | |
| 重量 Weight | kg | 2.6 |
| 允許介質溫度 Permissible Medium Temperature | °C | 5~40 |
| 電機絕緣等級 Motor insulation calss | H | |
| 材質說明 Material | Pump head PPS、Diaphragm PTFE Coated、Valves FFKM、Gasket FFKM | |
| 馬達壽命 Reference Lifetime | hours | Vacuum: 10,000 Pressure: 8,000 |

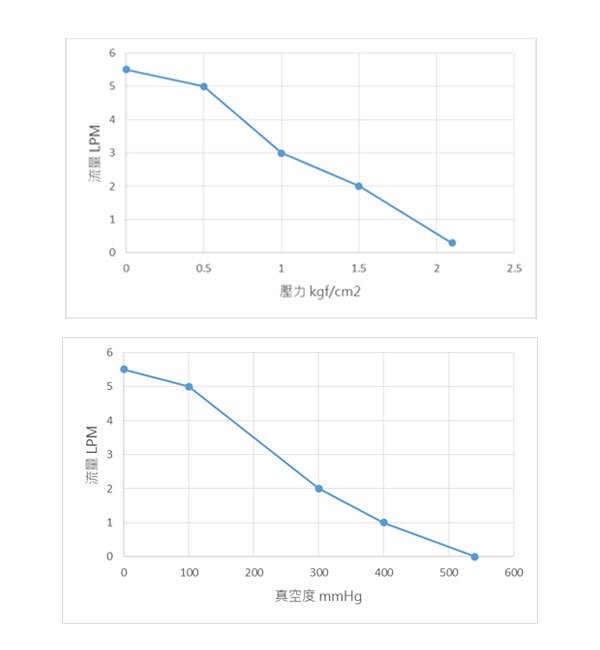

Product Performance

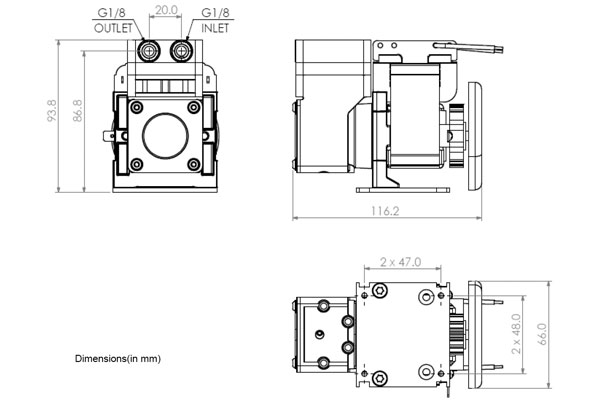

Product Dimensions
