UN-5.8SPC AC Air Sampling Pump | Industrial Diaphragm Pump for Continuous Gas Monitoring Systems

Feature：
◆ AC motor for stable long-term operation
◆ Suitable for industrial environments with continuous usage
◆ Reliable diaphragm design with consistent flow output
◆ Low maintenance and durable construction
◆ Ideal for fixed installation monitoring systems

Materials：
Pump Head: PPS
Diaphragm: EPDM
Valves: FKM
Seals: FKM

Application：
◆ Industrial gas monitoring systems
◆ Environmental air monitoring stations
◆ Continuous gas analyzers
◆ Fixed installation sampling systems

Suitable Gas Types
✔ Ambient air
✔ Industrial gases (non-corrosive)
✔ CO₂, N₂, O₂

✖ Not recommended
Corrosive gases

Before selecting the pump, please identify the gas composition and confirm whether the gas contains condensable vapors, particulates, solvents, dust, corrosive substances, or acidic/alkaline components.

Product Specifications

規格項目 SPEC	單位 UNIT	規格值 SPEC.Value
電壓 Rated Voltage	V	AC 230V / 50Hz
最大真空 Max.Vacuum	mmHg	610
最大壓力 Max. Pressure	kgf/cm2	1.5
最大流量 Open Flow	LPM	5.8
消耗功率 Power Consumption	W	39.5

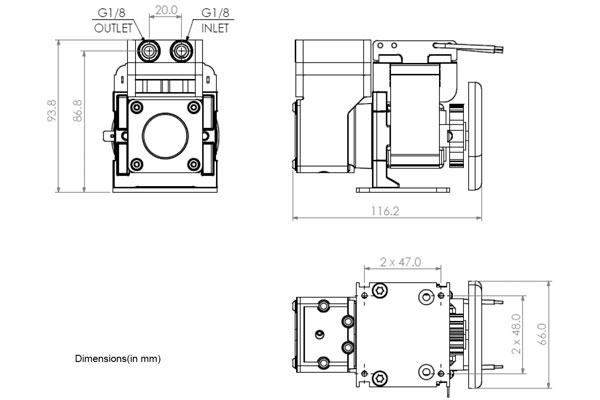

外型尺寸 Dimension	mm	116.2 x 66 x 94
安裝尺寸 Installation Size	mm	47 x 48 (M4)
安裝口徑 I.D. of screw thread		G 1/8"
重量 Weight	kg	2.6
允許介質溫度 Permissible Medium Temperature	°C	5~40
電機絕緣等級 Motor insulation calss		H
材質說明 Material		Pump head PPS、Diaphragm EPDM、Valves FKM、Gasket FKM
馬達壽命 Reference Lifetime	hours	Vacuum: 10,000 Pressure: 8,000
