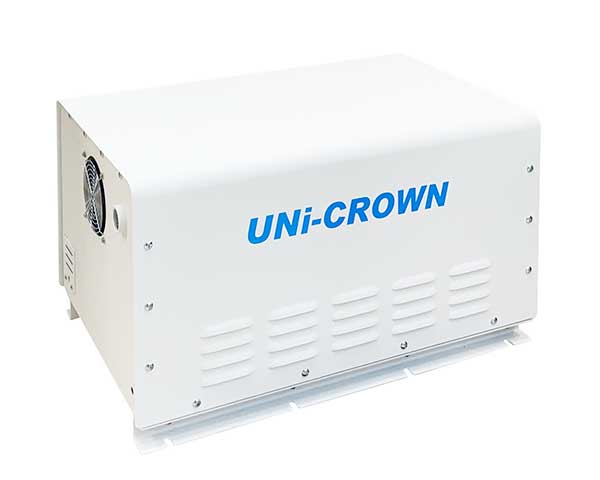

Our oilless vacuum pumps are the ideal solution for many industrial applications, such as conveying, transporting, fixing, lifting, handling, drying, cooling and many more. UN-800V
Our Oilless Vacuum Pump is encased in a solid shell that’s engineered to withstand the harshest conditions.
Feature：
Solid Shell Protection, Oilless operation, Compact design, High flow rate with low noise level, Back pressure auto release,Motor with thermo protection, Rugged construction, low maintenance
Application：
Instruments & Medical application, Automatic machine assembly, Semi-conductor equipments, Degassing, Extracting, Vacuum Fixing, Pick & Place, Evacuation
Product Specifications
| 規格項目 SPEC | 單位 UNIT | 規格值 SPEC.Value |
|---|---|---|
| 電壓 Rated Voltage | V | AC 220 |
| 最大真空度 Max.Vacuum | mmHg | 680 |
| 最大流量 Open Flow | LPM | 700(60Hz)/560(50Hz) |
| 消耗功率 Power Consumption | W | 1800 |
| 外型尺寸 Dimension | mm | 730 x 460 x 400 |
| 安裝尺寸 Installation Size | mm | 620 x 420 |
| 適用內徑軟管 Hose ID Suggestion | PT | 1" |
| 重量 Weight | kg | 64 |
| 規格項目 SPEC | 單位 UNIT | 規格值 SPEC.Value |
|---|---|---|
| 電壓 Rated Voltage | V | AC 220 |
| 最大真空度 Max.Vacuum | mmHg | 680 |
| 最大流量 Open Flow | LPM | 700(60Hz)/560(50Hz) |
| 消耗功率 Power Consumption | W | 1800 |
| 外型尺寸 Dimension | mm | 730 x 460 x 400 |
| 安裝尺寸 Installation Size | mm | 620 x 420 |
| 適用內徑軟管 Hose ID Suggestion | PT | 1" |
| 重量 Weight | kg | 64 |
Product Dimensions
