UN-120V oilless vacuum pump is ideal for manufacturing and industrial markets applications, but should be considered for specific medical, laboratory, and Food & Beverage applications as well. Max Vacuum：680mmHg Max Flow：120LPM
Feature：
CE/RoHS Certification, Oil-free, All Wetted Aluminum,Oil-less, non-lubricated cup and cylinder,Parts Treated For Corrosion Protection From Moisture,Low Vibration, One Year Warranty Provided
Application：
LED test machine,Automation equipment, Spin coater, Exposure machine, Labeling Machine,Robotic arms
Certification：
CE EMC Certification
EN 55014-1:2006+A1:2009+A2:2011
EN 55014-2:2015
EN 61000-3-2:2014
EN 61000-3-3:2013
CE LVD Certification
EN 60335-1: 2012+A13:2017
EN 60335-2-80: 2003+A1:2004+A2:2009
RoHS Certification
Product Specifications
| 規格項目 SPEC | 單位 UNIT | 規格值 SPEC.Value |
|---|---|---|
| 電壓 Rated Voltage | V | AC 110 or 220 |
| 最大真空度 Max.Vacuum | mmHg | 680 |
| 最大流量 Open Flow | LPM | 120(60Hz) / 102(50Hz) |
| 消耗功率 Power Consumption | W | 300 |
| 外型尺寸 Dimension | mm | 250 x 128 x 184 |
| 安裝尺寸 Installation Size | mm | 203.5 x 89 x M6 |
| 安裝口徑 I.D. of screw thread | PT | 1/4" |
| 重量 Weight | kg | 7.8 |
| 規格項目 SPEC | 單位 UNIT | 規格值 SPEC.Value |
|---|---|---|
| 電壓 Rated Voltage | V | AC 110 or 220 |
| 最大真空度 Max.Vacuum | mmHg | 680 |
| 最大流量 Open Flow | LPM | 120(60Hz) / 102(50Hz) |
| 消耗功率 Power Consumption | W | 300 |
| 外型尺寸 Dimension | mm | 250 x 128 x 184 |
| 安裝尺寸 Installation Size | mm | 203.5 x 89 x M6 |
| 安裝口徑 I.D. of screw thread | PT | 1/4" |
| 重量 Weight | kg | 7.8 |

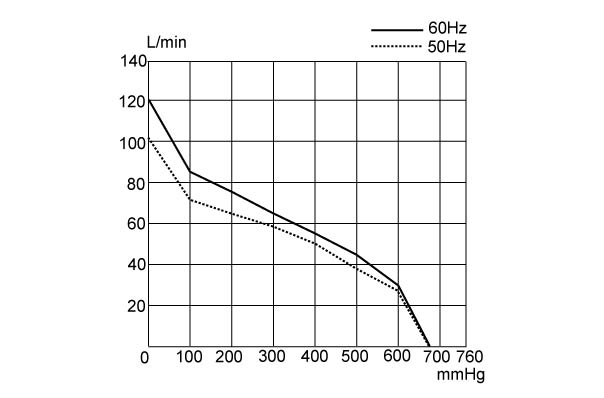

Product Performance

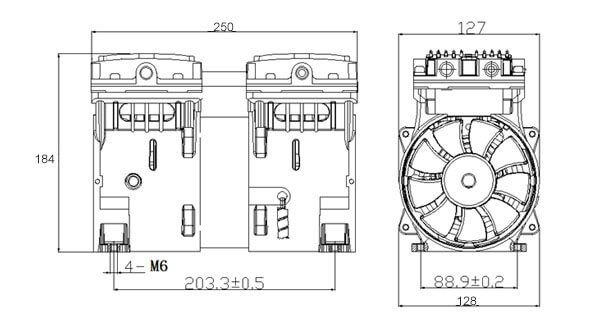

Product Dimensions
