UN-200V-B oilless vacuum pump is ideal for manufacturing and industrial markets applications, but should be considered for specific medical, laboratory, and Food & Beverage applications as well. Max Vacuum：690mmHg Max Flow：200LPM
Feature：
Oil-free rocking piston vacuum pump, Non-lubricated cup and cylinder, Long-life cup design, Stainless-steel valves, Thin wall cylinder for good heat transfer
Application：
Food machine, Vacuum drying oven, Deaeratiion machine, Laminator/LED test machine, Robotic arms,Vacuum packing, Milker Machine, Fitting/packaging machine, Medical/Dental offices, Laboratory, workshop science, vacuum packing, goat milker station powering
Accessories：
Come with 4 rubber suction feet to reduce/absorb vibration and noise
Product Specifications
| 規格項目 SPEC | 單位 UNIT | 規格值 SPEC.Value |
|---|---|---|
| 電壓 Rated Voltage | V | AC 110 or 220 |
| 最大真空度 Max.Vacuum | mmHg | 690 |
| 最大流量 Open Flow | LPM | 200(60Hz) / 160(50Hz) |
| 消耗功率 Power Consumption | W | ≦480 |
| 外型尺寸 Dimension | mm | 250 x 136 x 200 |
| 安裝尺寸 Installation Size | mm | 203 x 88.9 |
| 適用內徑軟管 Hose ID Suggestion | PT | 1/4" |
| 重量 Weight | kg | 8 |
| 規格項目 SPEC | 單位 UNIT | 規格值 SPEC.Value |
|---|---|---|
| 電壓 Rated Voltage | V | AC 110 or 220 |
| 最大真空度 Max.Vacuum | mmHg | 690 |
| 最大流量 Open Flow | LPM | 200(60Hz) / 160(50Hz) |
| 消耗功率 Power Consumption | W | ≦480 |
| 外型尺寸 Dimension | mm | 250 x 136 x 200 |
| 安裝尺寸 Installation Size | mm | 203 x 88.9 |
| 適用內徑軟管 Hose ID Suggestion | PT | 1/4" |
| 重量 Weight | kg | 8 |
Product Performance

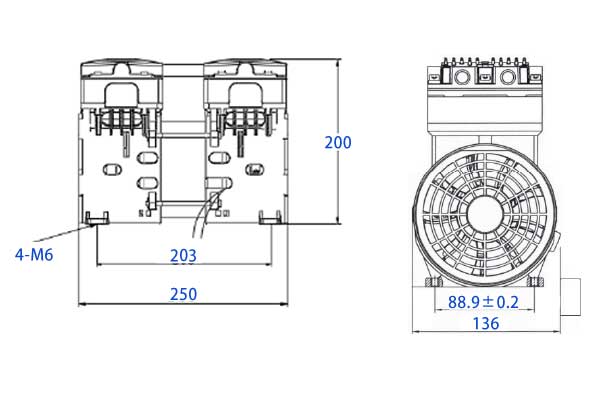

Product Dimensions
