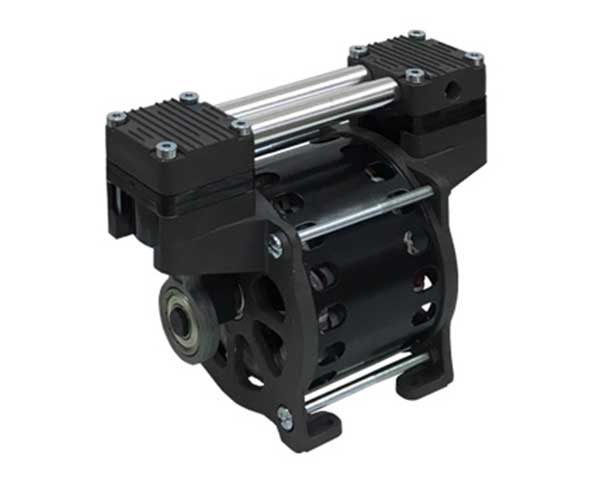

This Oilless Vacuum Pump can operate without any lubrication oil required UN-50DY
Feature：
It has two functions: Vacuum and Air Compression ,Oilless operation, Low noise level,Compact design, low vibration, low power consumption, stable performance, safety and reliability, Rugged construction, durable with long service life.
Application：
Cupping machine, Various application, Plate-making machine, Lab instrument, Medical equipment, Automatic machine and other machines and instruments.
Product Specifications
| 規格項目 SPEC | 單位 UNIT | 規格值 SPEC.Value |
|---|---|---|
| 電壓 Rated Voltage | V | AC 110 or 220 |
| 最大真空度 Max.Vacuum | mmHg | 620 |
| 最大壓力 Pressure | kgf/cm2 | 3 |
| 最大流量 Open Flow | LPM | 25(60Hz) / 23(50Hz) |
| 消耗功率 Power Consumption | W | 110 |
| 外型尺寸 Dimension | mm | 176 x 94 x 127 |
| 安裝尺寸 Installation Size | mm | 46 x 78 x M5 |
| 適用內徑軟管 Hose ID Suggestion | PT | 1/8" |
| 重量 Weight | kg | 2.5 |
| 規格項目 SPEC | 單位 UNIT | 規格值 SPEC.Value |
|---|---|---|
| 電壓 Rated Voltage | V | AC 110 or 220 |
| 最大真空度 Max.Vacuum | mmHg | 620 |
| 最大壓力 Pressure | kgf/cm2 | 3 |
| 最大流量 Open Flow | LPM | 25(60Hz) / 23(50Hz) |
| 消耗功率 Power Consumption | W | 110 |
| 外型尺寸 Dimension | mm | 176 x 94 x 127 |
| 安裝尺寸 Installation Size | mm | 46 x 78 x M5 |
| 適用內徑軟管 Hose ID Suggestion | PT | 1/8" |
| 重量 Weight | kg | 2.5 |

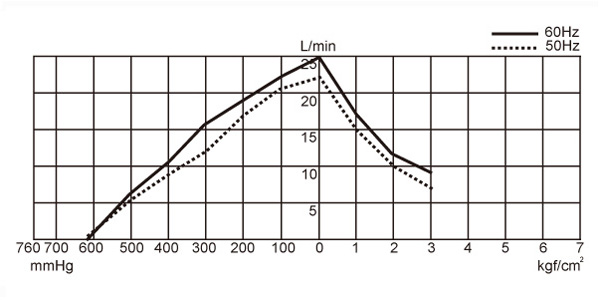

Product Performance

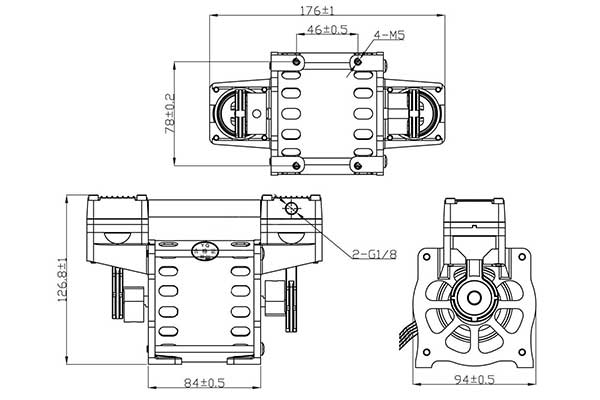

Product Dimensions
